IP 65
440 W RGBWLA 90°
40 W RGBW 3.8°
95 CRI
16 bit
12.5 kHz
decorative covers
beam shapers
barn doors

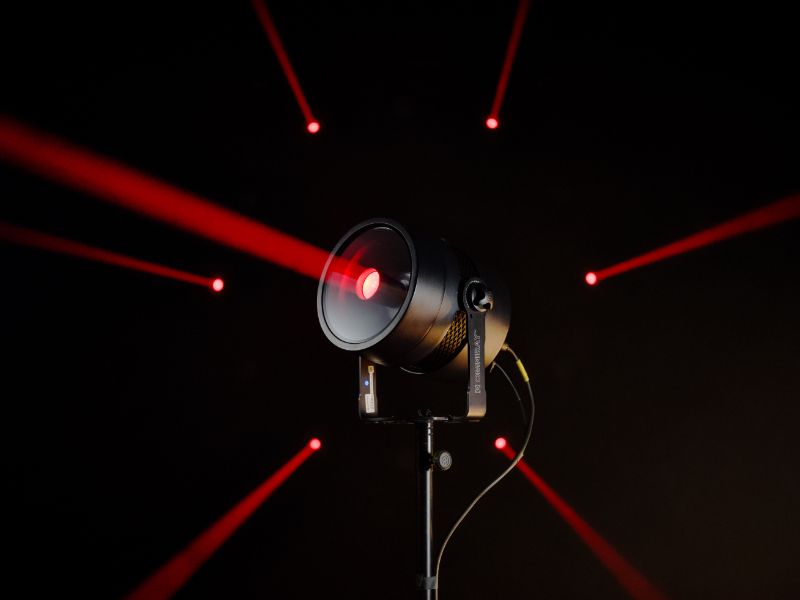

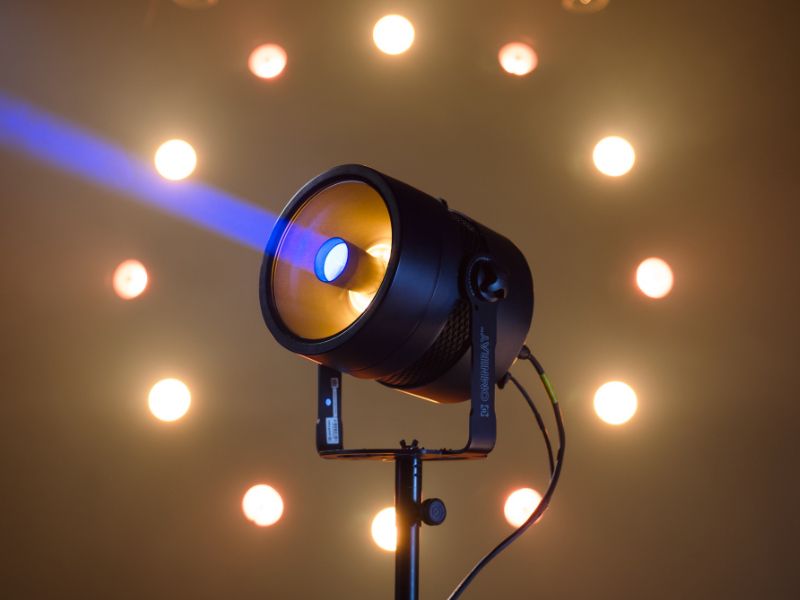

OMNIRAY™ introduces a brand-new category of stage lighting: the Hybrid Utility Fixture. Designed to simplify setups and expand creative possibilities.
An all-in-one design means you can achieve more with fewer fixtures, saving time, space, and costs.
Main 440W RGBWLA LED source boasts unmatched CRI for vibrant and accurate colours
440W
RGBWLA
90°
CRI >95
Secondary 40W RGWA LED creates dramatic narrow beams and mid-air effects for a unique visual experience.
40W
RGBW
3.8°
OMNIRAY™ takes versatility to the next level with its range of magnetic lens overlays and accessories. Designed for effortless attachment and precision, these accessories expand the creative potential of your lighting. The overlays lock securely in 8 positions, offering quick adjustments and consistent results.
Decorative covers
(custom shape may be 3D-printed)
Radial diffusers
Elliptical diffusers
Fresnel lenses
More to come…
Precision tilt system
ensures perfect alignment
The big-plate yoke with omega brackets
secures the fixture anywhere you put or hang it
Large, responsive display with touch buttons
offers intuitive control
The Colour Feedback System
allows for monitoring fixture status visually from distance.
With its IP65 rating and durable construction, OMNIRAY™ is ready for any environment.
OMNIRAY™ is designed to deliver top-notch performance, whether you’re lighting a massive concert stage or a meticulous TV set.
12.5 kHz
flicker-free performance
16-bit
dimming and colour mixing
CRI >95
Silent fan mode
OMNIRAY™ was created to inspire and simplify. It’s the answer to the growing demands of stage lighting professionals who deserve tools that are powerful, versatile, and intuitive.
We can’t wait to see the breathtaking shows and productions that will come to life with this revolutionary fixture.
Weight (fixture only)
14 kg
30.87 lbs
protection rating
IP65
INPUT VOLTAGE
100-240 V 50/60 Hz
Max power consumption
450 W
Power connectors
AC power in/thru: powerCON TRUE1
Light sources
main source
narrow source
power
440 W RGBWLA
40 W RGBW
beam angle
90°
3.8°
colour temperature
2000 – 6500 K
6000 K
Total luminous flux
8 000 lm
CRI
> 95 (calibrated mode)
Control Connectors
DMX/RDM data in/thru: 5-pin XLR
Firmware from flash drive: USB A
Control features
8 DMX modes (8-28 channels)
RDM
macros
influencer/follower mode
CRMX (optional module)
user interface
OLED display
highlighted touch buttons
Colour Feedback System™ – fixture’s auto information status
CERTIFICATES
CE
ROHS
ETL
UL
UKCA
INTELECTUAL PROTECTION
design patent
utility patent (pending)
trademark
WARRANTY
24 m
What’s in the box
Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual
OMNICLE™ – decorative magnetic cover
Additional accessories
Rigging:
omega bracket with 1/4 fast locks
Optics – magnetic:
Diffuser 20º
Diffuser 10×60º (elliptical)
Micro Fresnel F220
Control features:
CRMX
Packing:
flight case (4-units)
soft case bag (1-unit)
