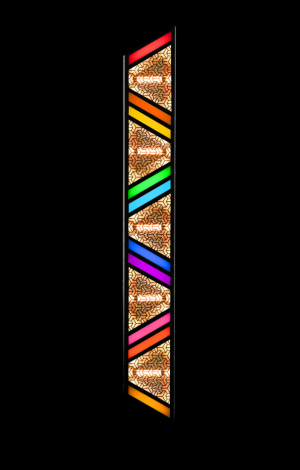

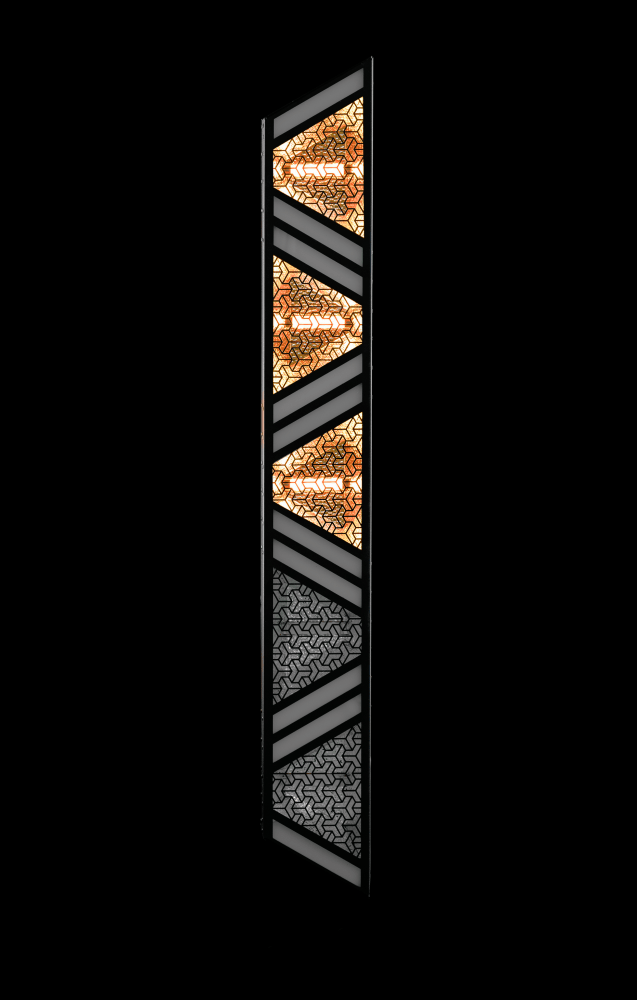

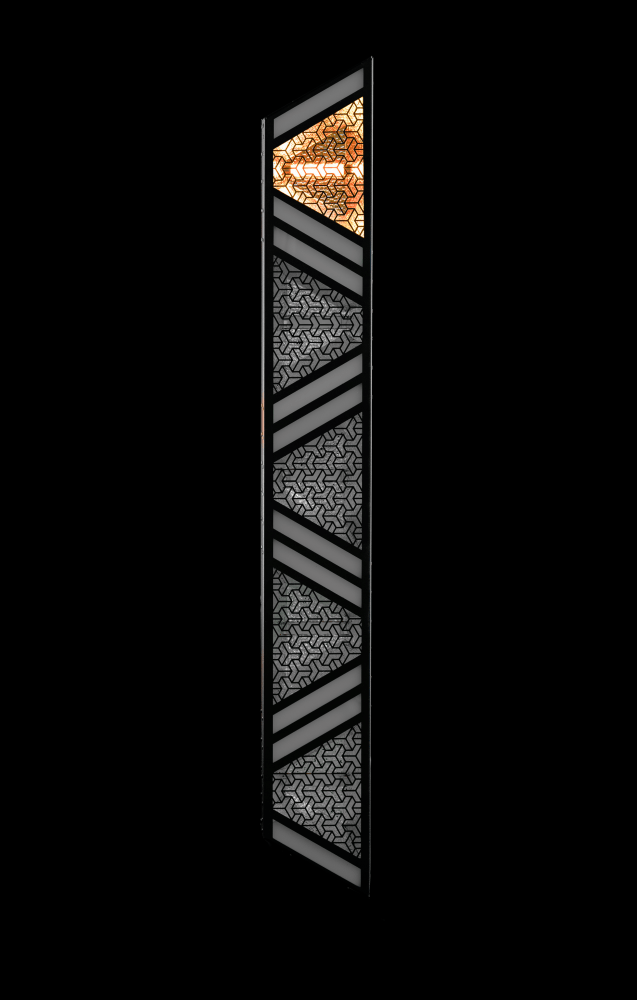

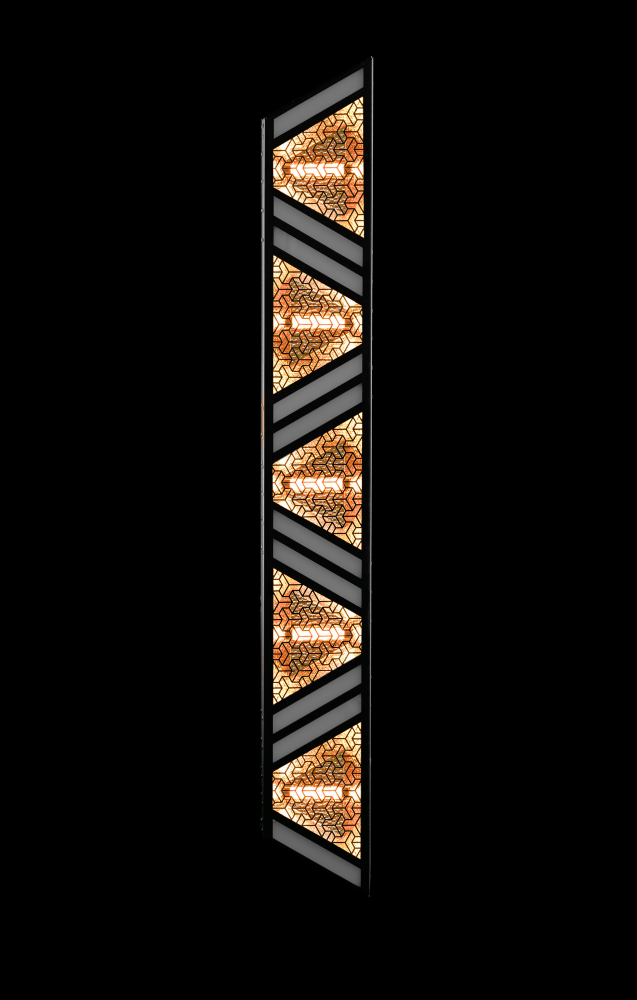

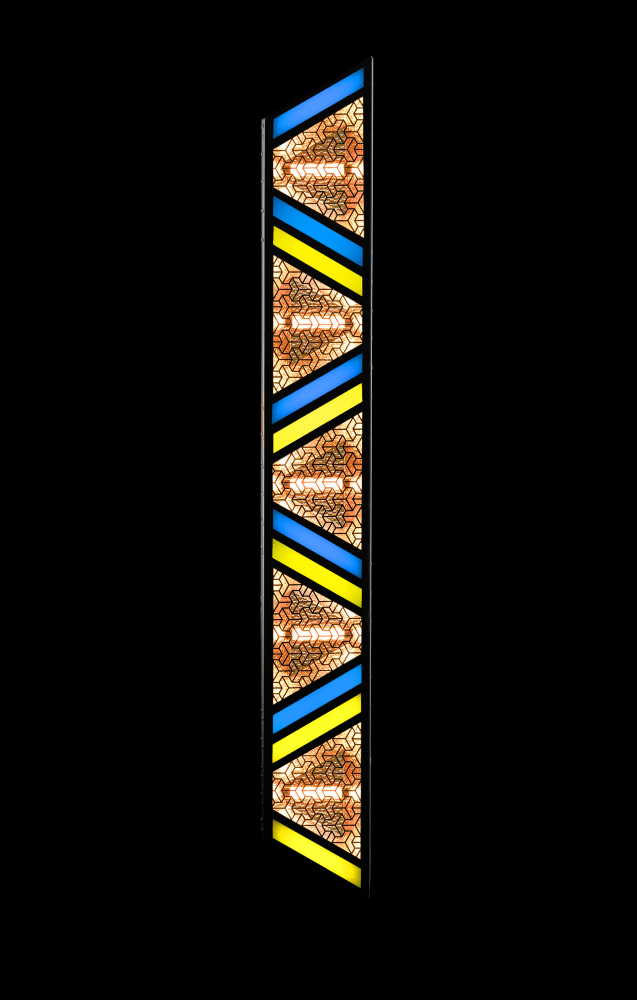

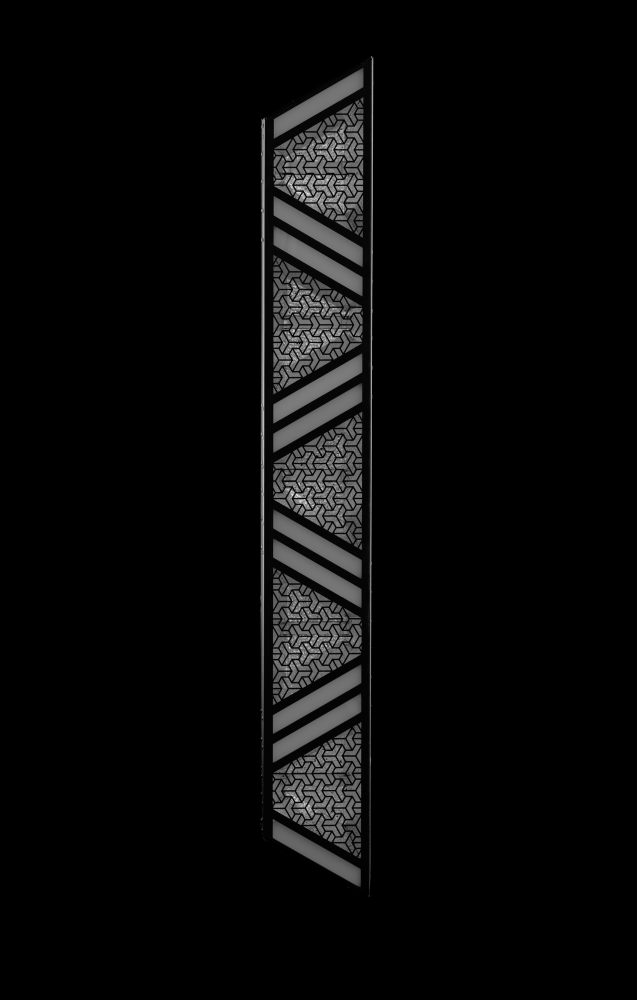

Completely new, unique design. Perfect for building bigger structures, where your creativity is the only limit.
A combination of very strong tungsten emulated main LED sources and RGBW strips are perfect for any stage and any mood of an event.
• tungsten emulation
• smooth dimming
• warm on lower values
• bright and blinding on higher values
• saturated colours
• smooth dimming and colour mixing
• separate control
• automatic channel order when the orientation of the fixture changes • fixture knows where is its TOP and RIGHT side
• connect fixtures together • click-click, no-screws system • solid connection • perfect shapes
• 6 DMX modes
• Colour Feedback System™
• RDM
• W-DMX option
• macros
• power through
| Dimensions | 118 x 15 x 18 cm (46.5 x 5.9 x 7 in) |
|---|---|
| Weight | 8 kg (17.5 lbs) |
| Rigging | - 2 x 12 mm (1/2 in) holes for clamp on back - base (included) - adaptor (included) with 12 mm (1/2 in) hole for clamp and/or base [Quick Joint System™] |
| Mounting position | Any |
| Input voltage | 100-240V 50Hz/60Hz |
| Power consumption | max 280W |
| Power connector | PowerCon TRUE1 power through |
| Control connector | - 5 PIN XLR (both: in & out) - Art-Net (in) |
| Light sources | - 5 x LED dim-to-warm white - 10 x RGBW strips |
| Color temperature |
- 1600-3200K - RGBW |
| CRI | >90 |
| Optics | - High reflective hammered reflector - Opal diffuser |
| Control features | - 6 DMX modes (12-97 DMX channels) - Art-Net - RDM - macros - W-DMX (optional module) |
| User interface |
- High-contrast LCD display - Highlighted buttons |
| Warranty | 24 months |
| IP rating | IP20 |
| What's in the box | - Fixture - 2m power cord (PowerCon TRUE 1<-> no plug) - Base - Adaptor for a hook or a base [QJS™] - User manual |
| Libraries: | go to PORTMAN® SUPPORT PORTAL |
