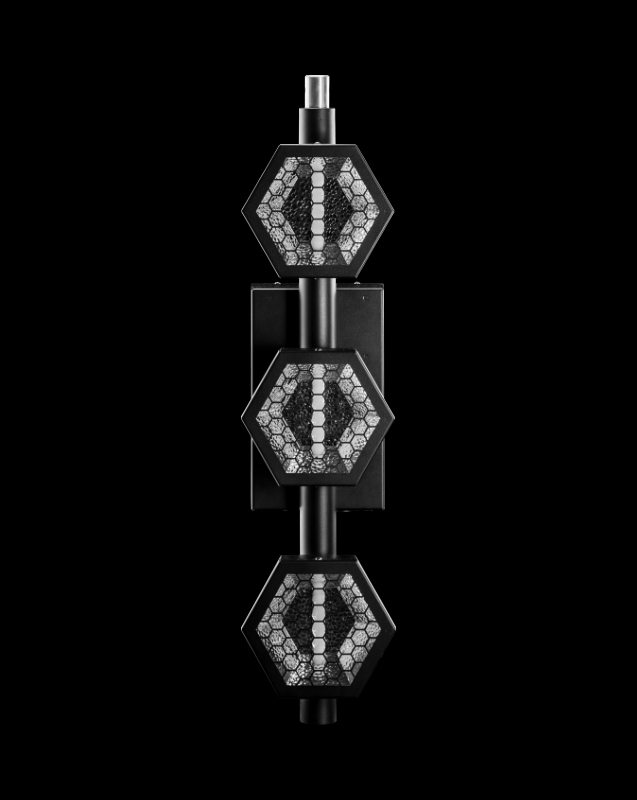

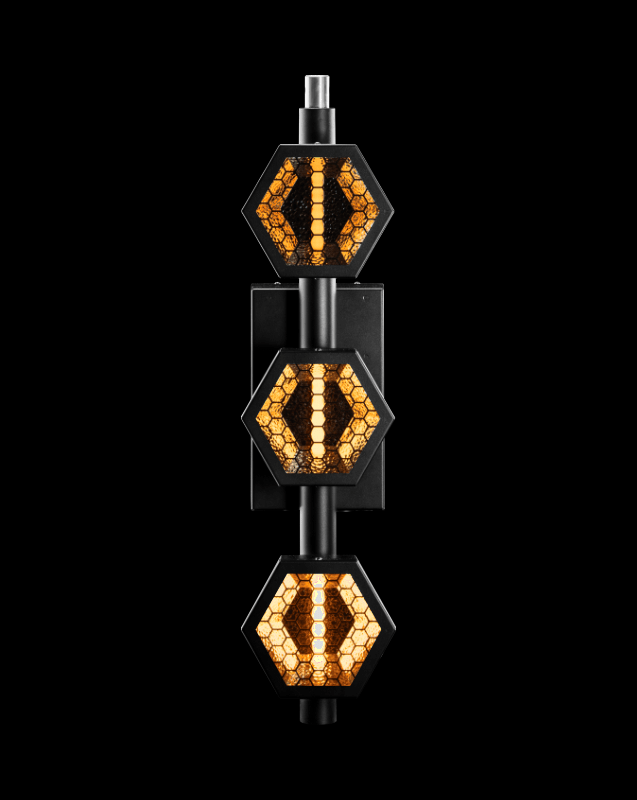

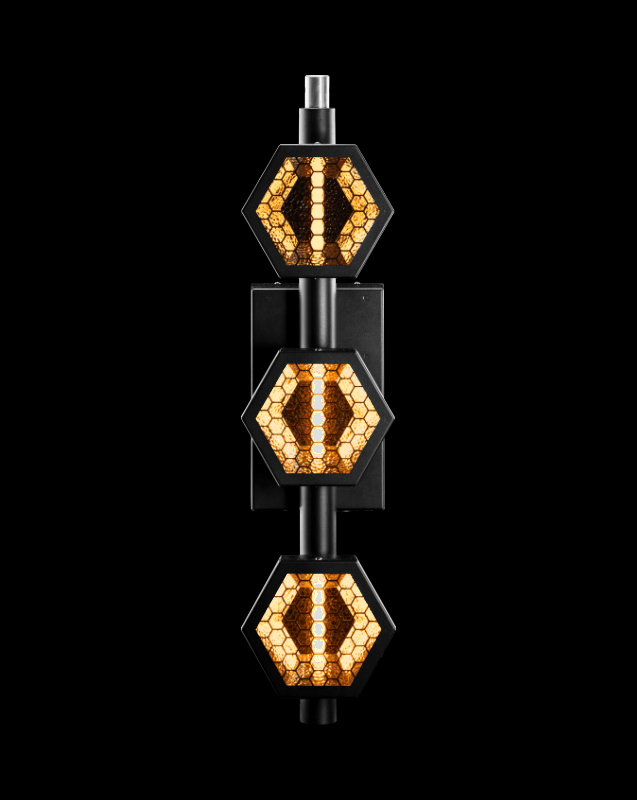

EVO ELEMENT™

super modular stage fixture, fully compatible with the P2 EVO™ – Portman's bestseller. This eye-candy blinder offers full halogen source emulation along with RGBW glow for each pixel. Combine them freely, build stunning structures, and amaze your audience.

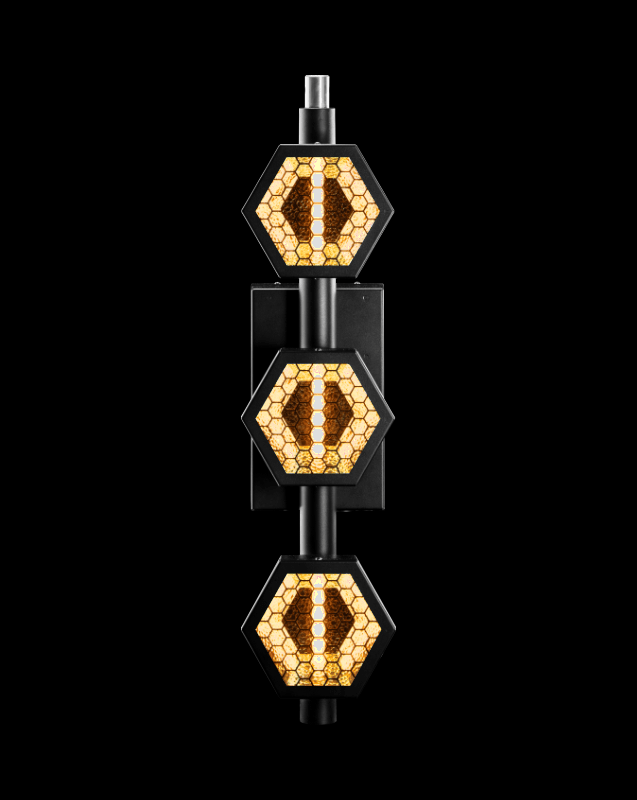

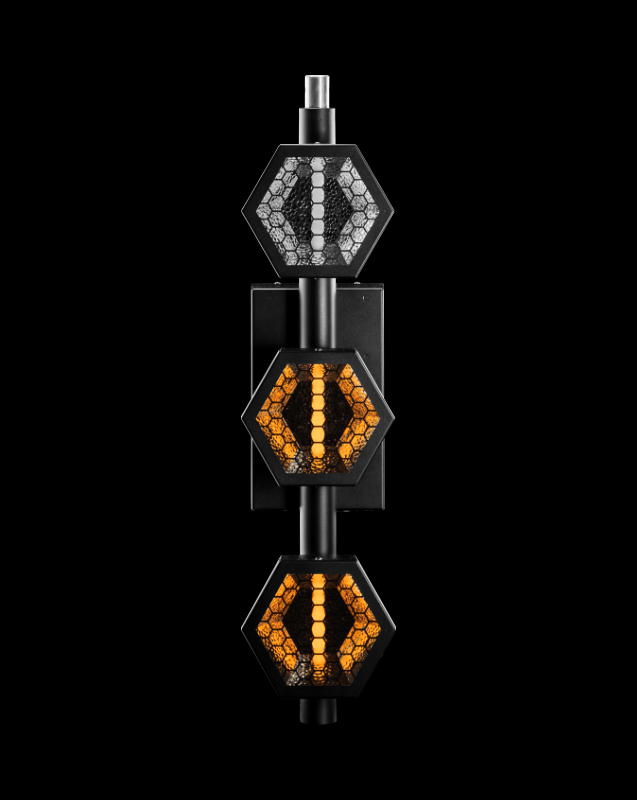

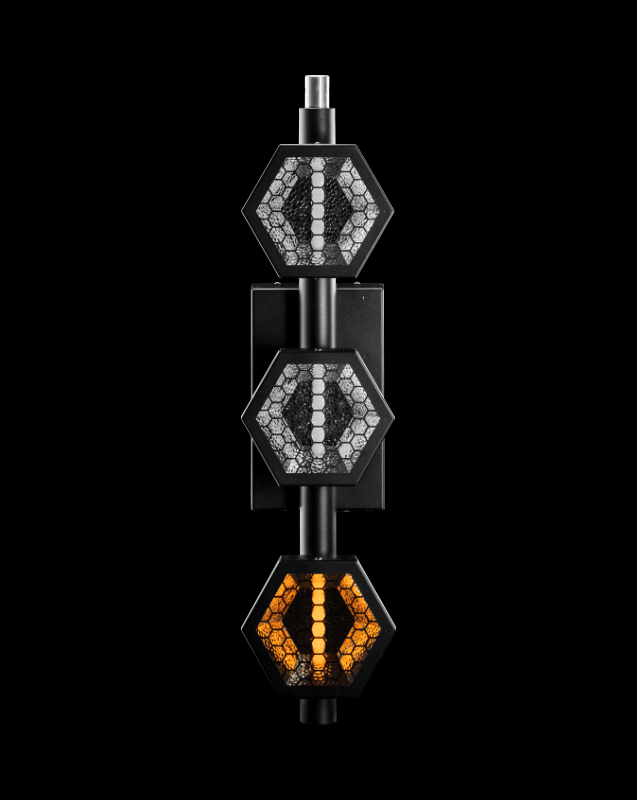

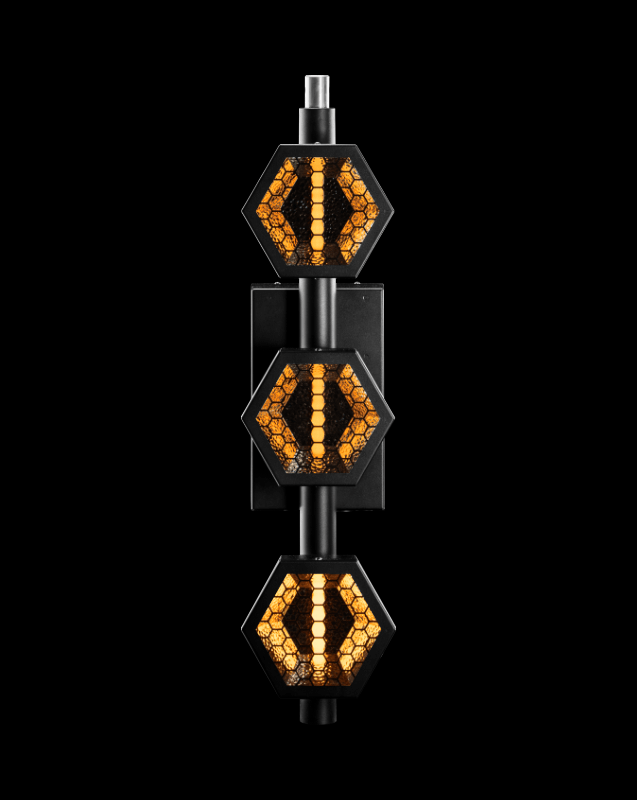

TRUE TUNGSTEN EMULATION

3×60W Portman haloLED™ powerful light sources with full halogen emulation.

Experience seamless transitions from warm, low-intensity glows to cooler, blinding effects—each light source equaling a 300W halogen lamp. Customize your light show by selecting different dimming curves or strobe mode.

You’ll be amazed at how closely our haloLED™ replicates real halogen light.

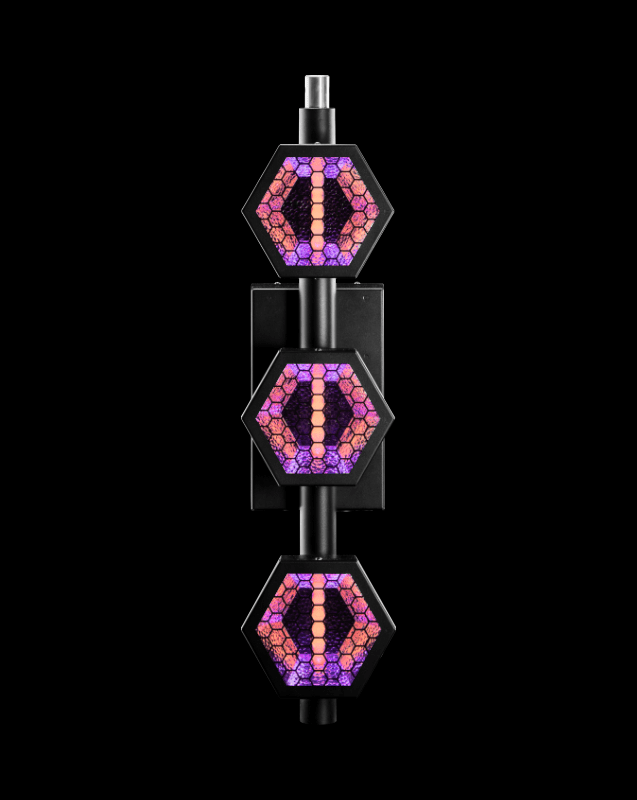

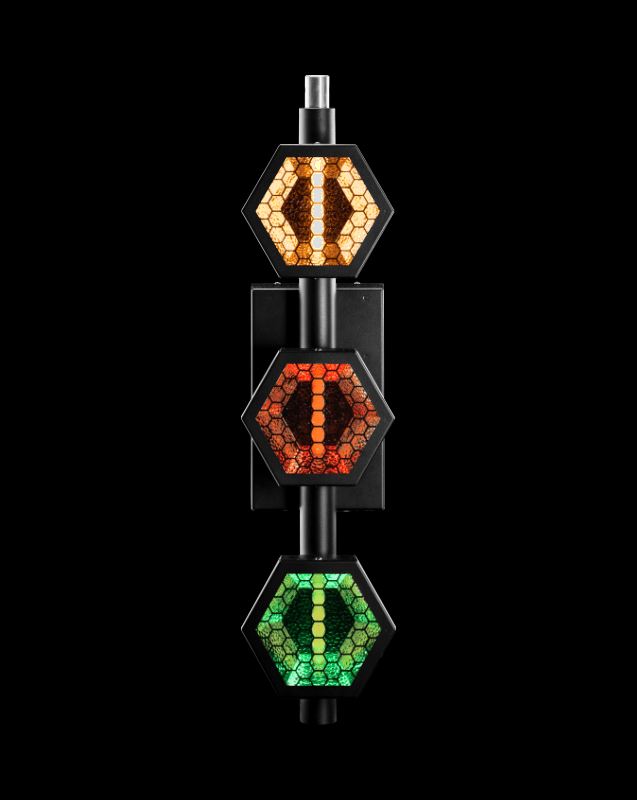

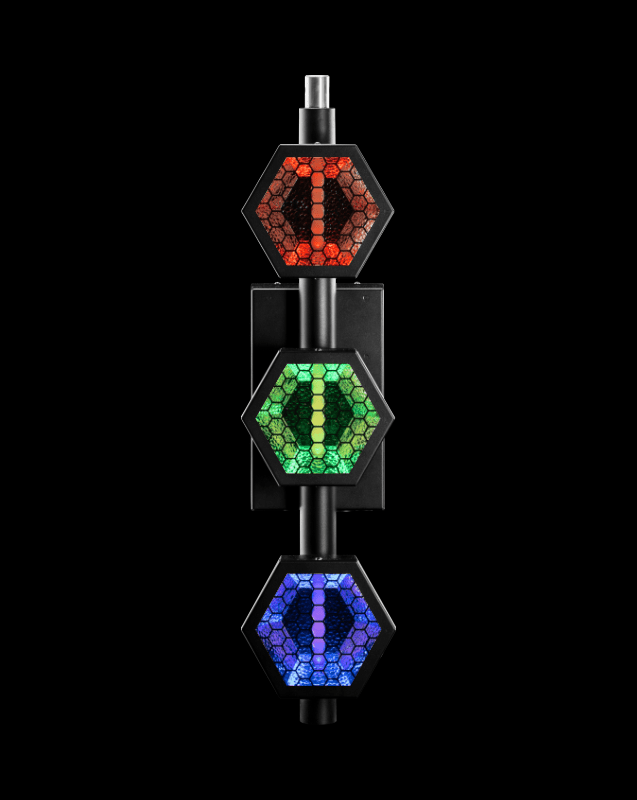

RGBW for Enhanced Ambiance

3×12W RGBW Glow

Operating at 16-bit, they deliver ultra-smooth colour mixing with rich, saturated tones. This feature allow you to elevate the mood or transform the character of the fixture and the entire event.

Compatible with P2 EVO™

EVO ELEMENT™ and P2 EVO™ can be seamlessly connected together and/or using the E-CONN™ – 4-way connector, allowing you to build any structures.

4-way connector

E-CONN™

This exceptionally robust additional accessory allows you to link fixtures into larger structures. It enables building precise and rigid constructions quickly and efficiently.

Try this,
Light me up!

MAIN FEATURES

3 x portman haloLED™

• 3x 60W
• true tungsten emulation
• smooth dimming
• warm on lower values
• bright and blinding on higher values

3 x RGBW glow

• 3x 12W
• saturated colours
• smooth dimming and colour mixing
• separate control

Hi-class electronics

• 6 DMX modes
• Colour Feedback System™
• RDM
• W-DMX option
• macros
• power through

E-CONN™ connector (optional)

• 4-way connector
• adjustable arms
• solid connection
• perfect shapes

Specification

EVO ELEMENT™

Dimensions	866 x 205 x 189mm (34.09 x 8.07 x 7.44in)
Weight	5,2kg (11,46lbs)
Rigging	- 2 x 12 mm (1/2 in) holes for clamp on back - base (not included) - hanging adaptor (included) with 12 mm (1/2 in) hole for clamp
Mounting position	Any
Input voltage	100-240V 50Hz/60Hz
Power consumption	max 240W
Power connector	PowerCon TRUE1 power through
Control connector	- 5 PIN XLR (both: in & out)
Light sources	- 3 x haloLED™ (3x60W) - 3 x RGBW glow (3x12W)
Color temperature	- 1600-3200K - RGBW
CRI	>90
Optics	- High reflective hammered reflector - Opal diffuser
Control features	- 6 DMX modes (9-39 DMX channels) - RDM - macros - W-DMX (optional module)
User interface	- High-contrast LCD display - Highlighted buttons
Warranty	24 months
IP rating	IP20
What's in the box	- Fixture - 2m power cord (PowerCon TRUE 1<-> no plug) - hanging adapter (also for tripod) - User manual
P2 EVO™ compatibility	- Height: 2x EVO ELEMENT™ = 1x P2 EVO™ - the same pixels' sizes - the same light sources - the same accessories
Additional accessories	- E-CONN™ (4-way connector. Each 30° adjustable arms) - P2 EVO base - P2 EVO height adapter - WDMX module - male-male connector - flight case
Libraries:	go to PORTMAN® SUPPORT PORTAL

SUPPORT & DOWNLOAD

EVO ELEMENT™

don't pretend

beoriginal

becreative

beauthentic

bereal

beyourself

beinspiring

beinnovative

betrue

beunique

selling, distributing, manufacturing, and using commercially copies is a violation of the law

don't pretend on stage, be yourself
choose original, patented and safe stage lighting from pro sources - choose portman®

EVO ELEMENT™, patented design. Also in China.
专利设计。也在中国

Solid 4-way connector

optional accessory

• fits for P2 EVO™ and EVO ELEMENT™
• two adjustable arms (LOCK ON 60° / 90°)
• build triangles, squares, hexagons, octagons...
• build structures fast and easy
