Let’s strobe crazy!

Engineered for the Visual Freaks!

For years, lighting rigs have relied on flat, predictable rectangular strobe bars. FREAX™ disrupts that convention. Built specifically for the visual freaks, programmers, and lighting architects who refuse to settle for the ordinary.

Main RGBW with LIQUIDshine™

400 W RGBW – 11 sections
7.874 lm

The primary heart is the LIQUIDshine™ wash light unit with 11 sections – a specular mirror chamber that multiplies 400W of RGBW color into a fluid, multi-dimensional reservoir of light.

TRI-X™ strobe

700W CW – 60 sections
23.541 lm

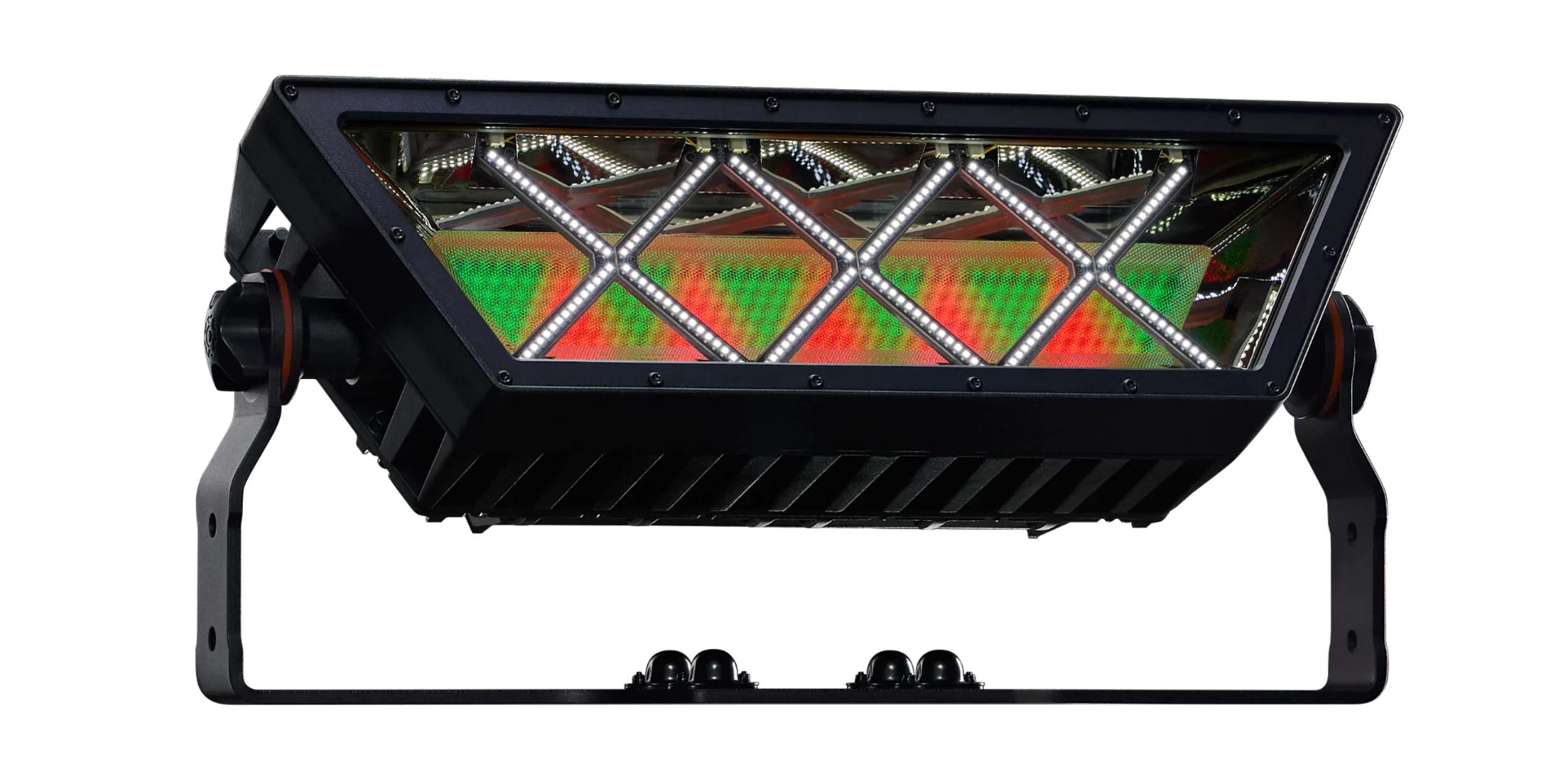

Suspended over the mirror chamber are three X-shaped TRI-X™ white strobe units. Pushing over 23,000 lumens across 60 independently controllable pixel sections, FREAX™ bites through dense atmospheric haze with raw, predatory intensity.

EXOclaws™ IP65 body

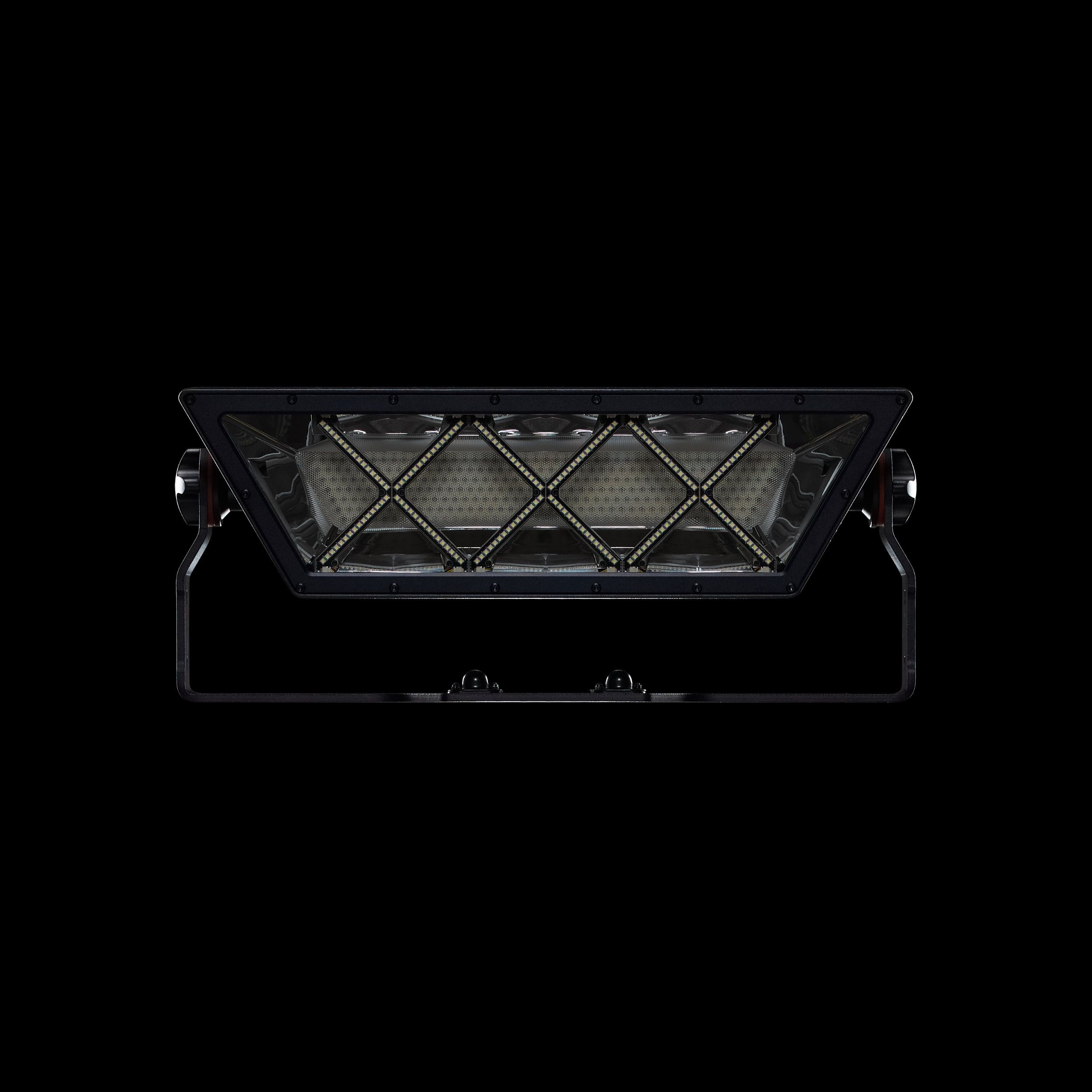

FREAX_front_alloff_BlackBg

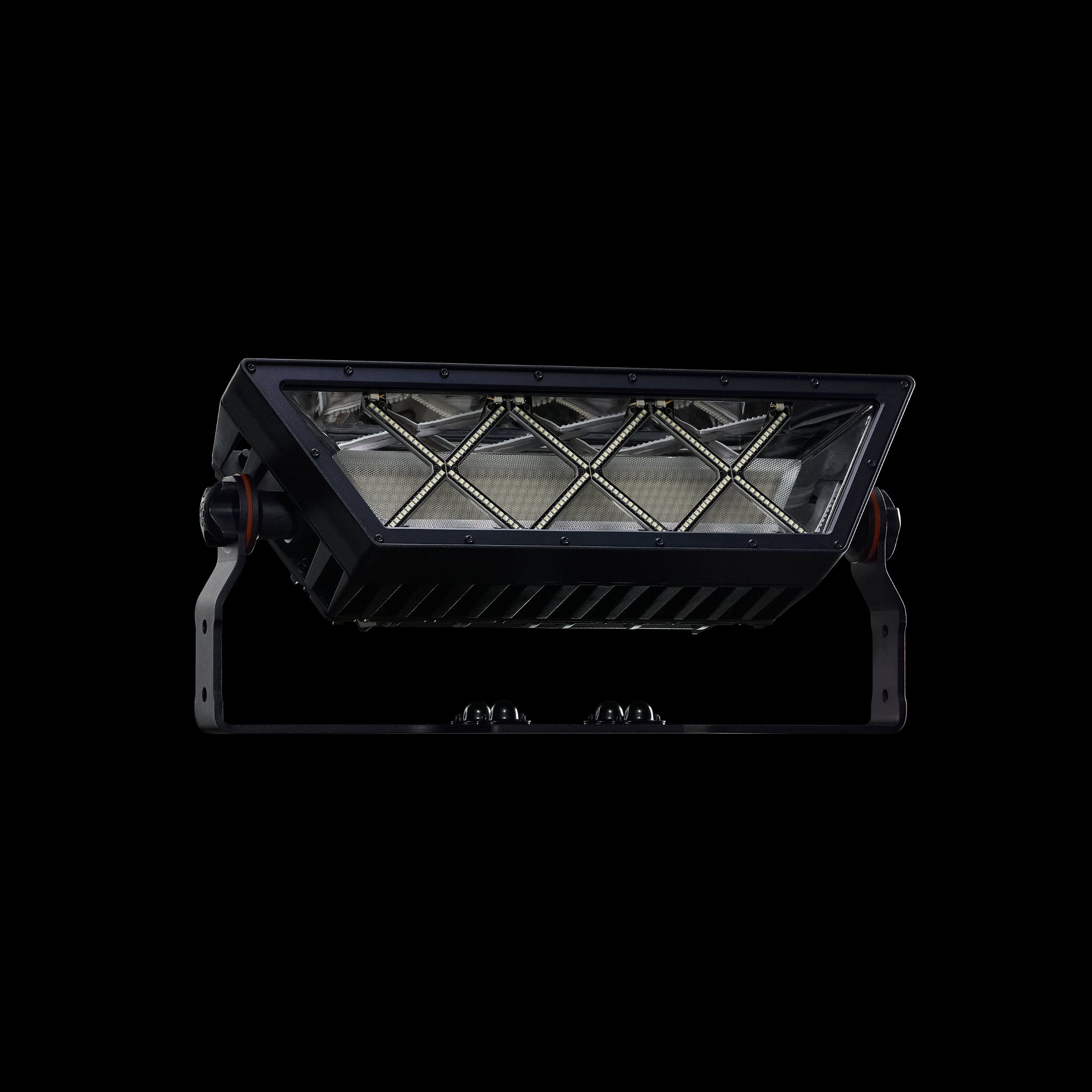

FREAX_hero_off_BlackBg

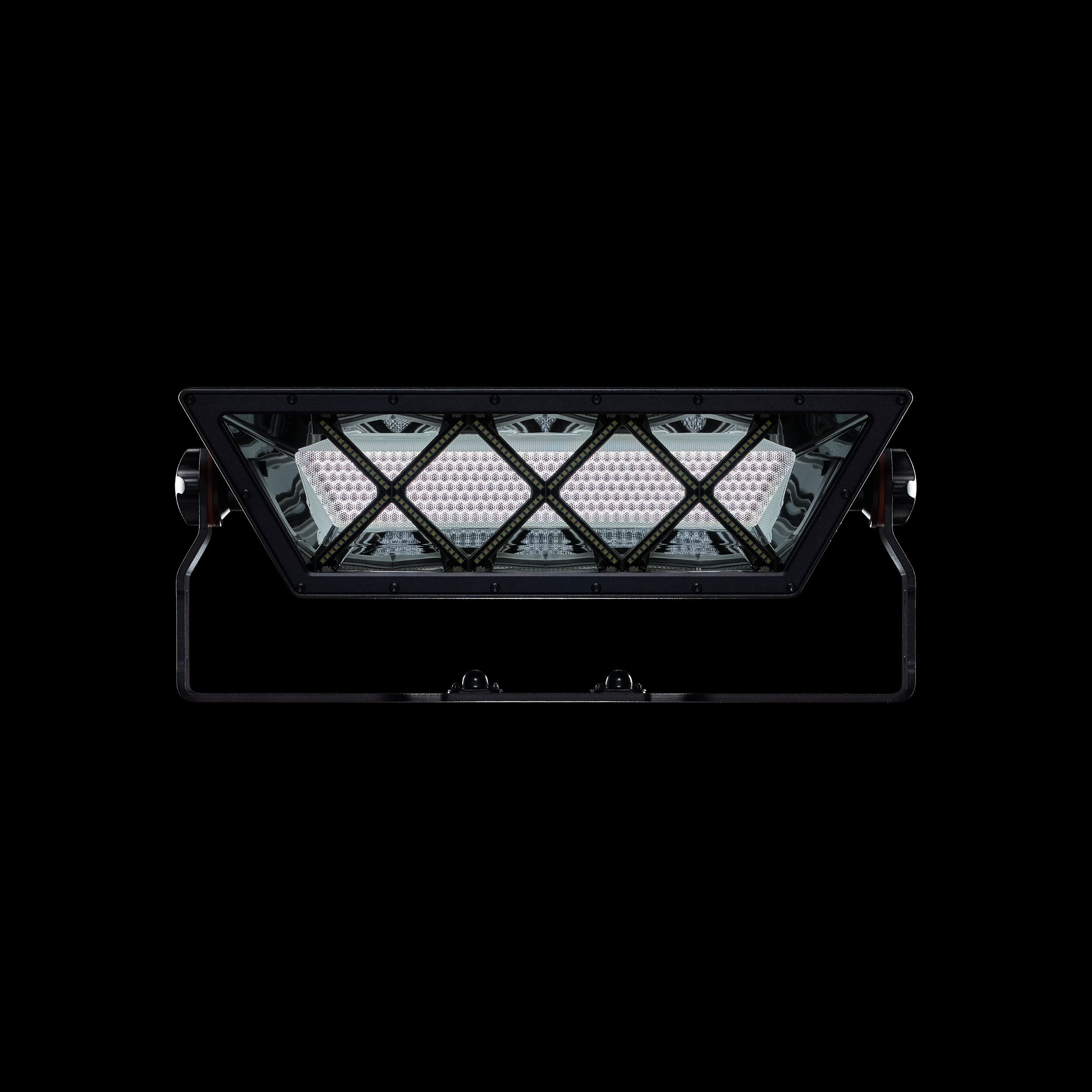

FREAX_front_White20%_StrobeOff_BlackBg

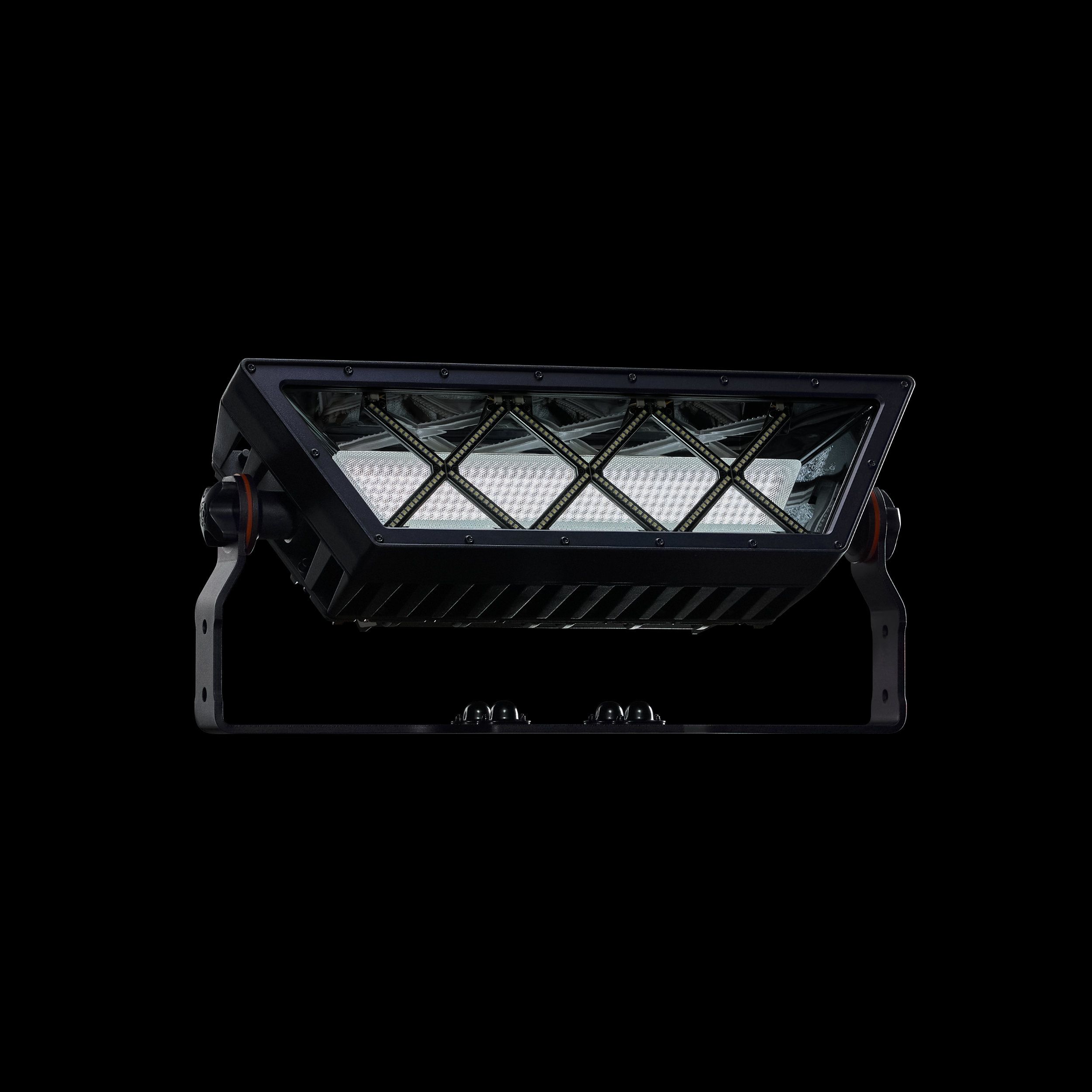

FREAX_hero_White20%_StrobeOff_BlackBg

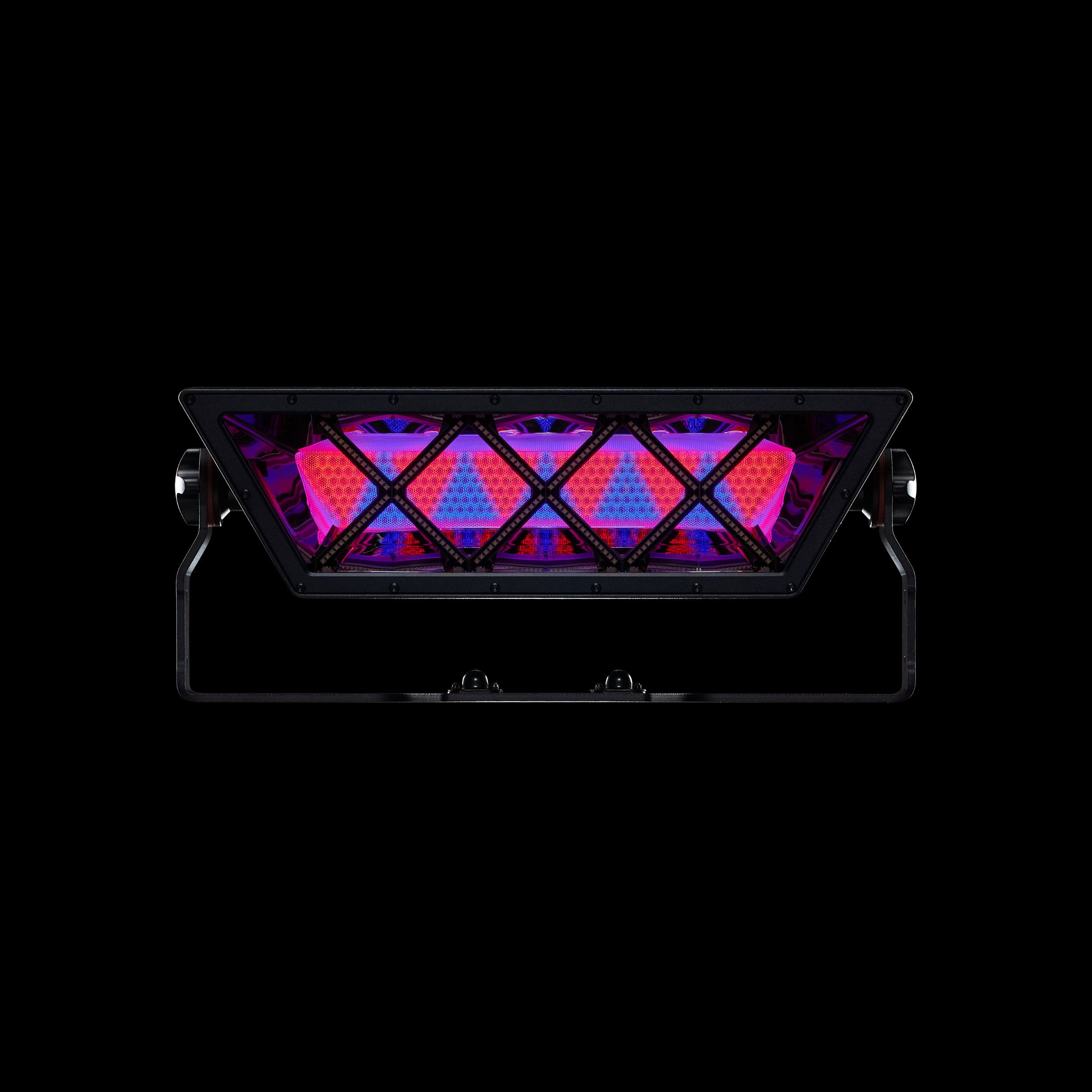

FREAX_front_Sections1-20%_StrobeOff_BlackBg

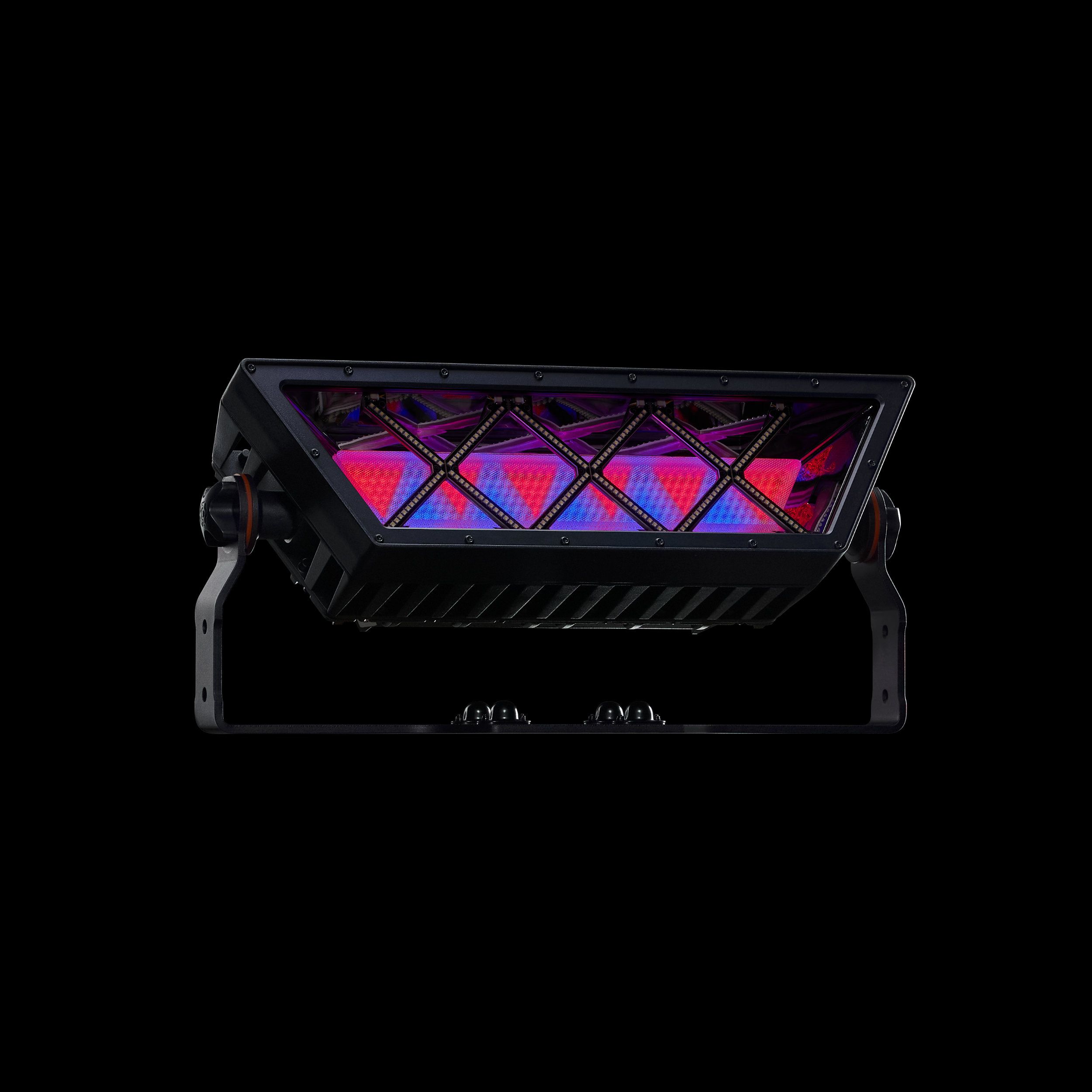

FREAX_hero_Sections1-20%_StrobeOff_BlackBg

FREAX_hero_Sections2-20%_Strobe10%_BlackBg

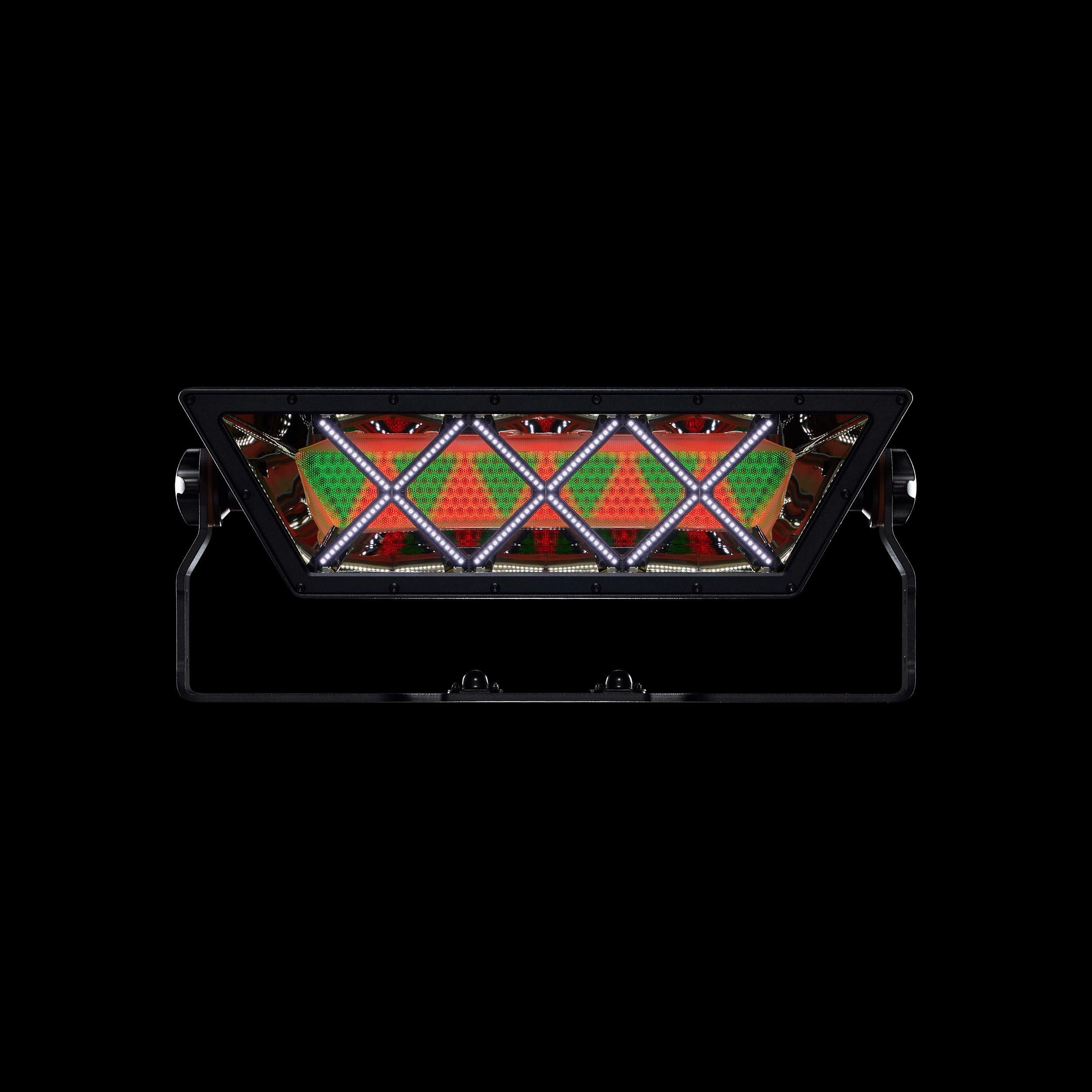

FREAX_front_Sections2-20%_Strobe10%_BlackBg

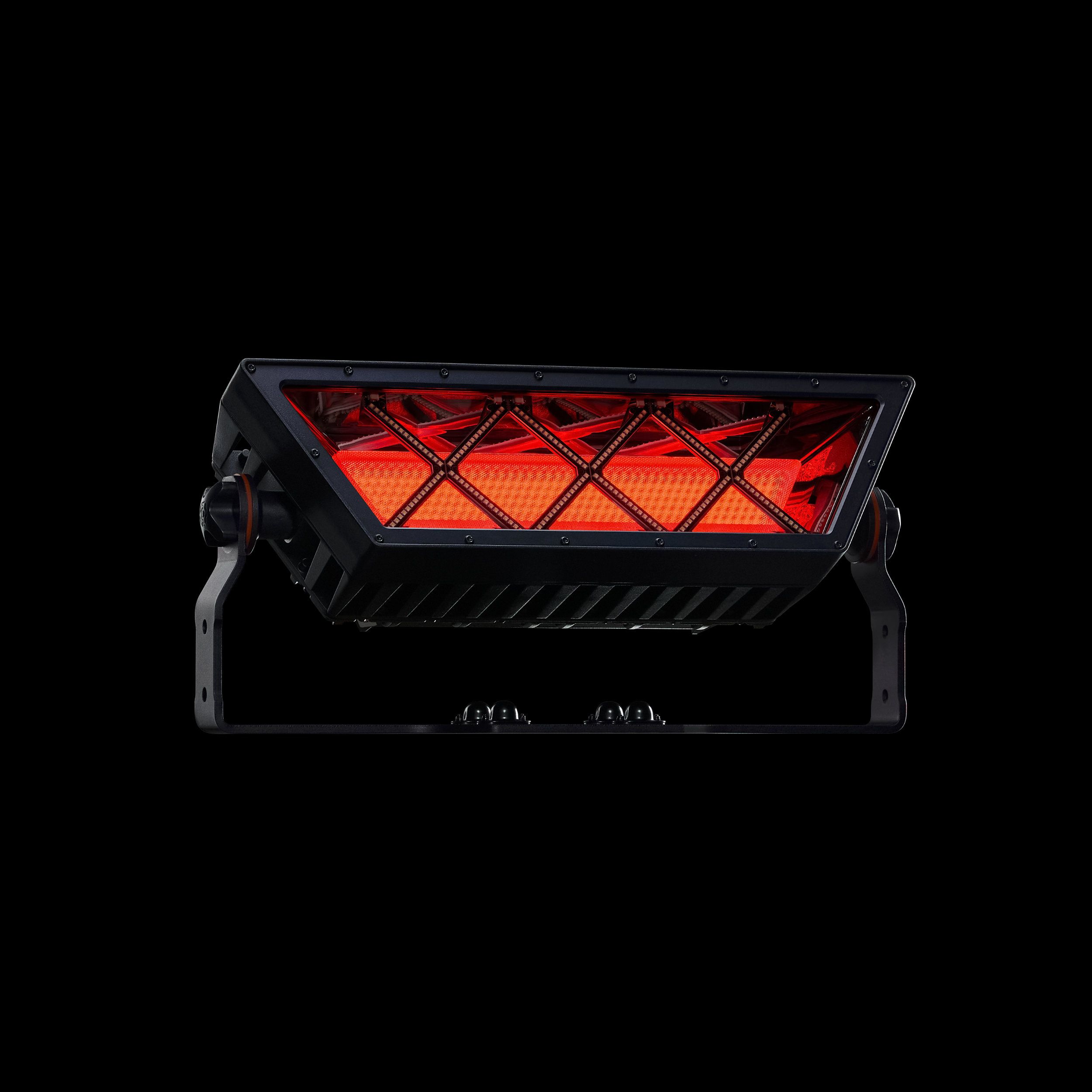

FREAX_hero_Red20%_StrobeOff_BlackBg

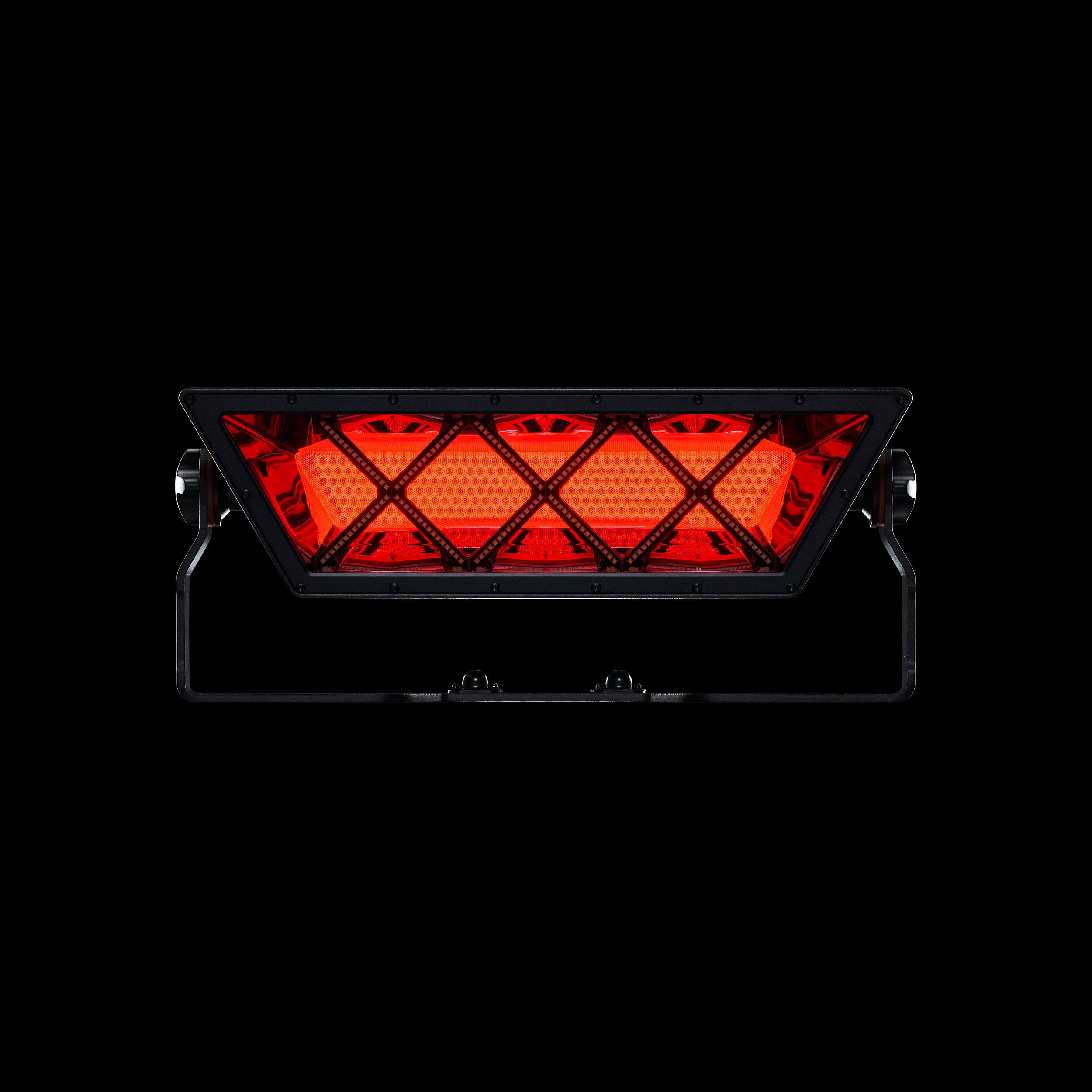

FREAX_front_Red20%_StrobeOff_BlackBg

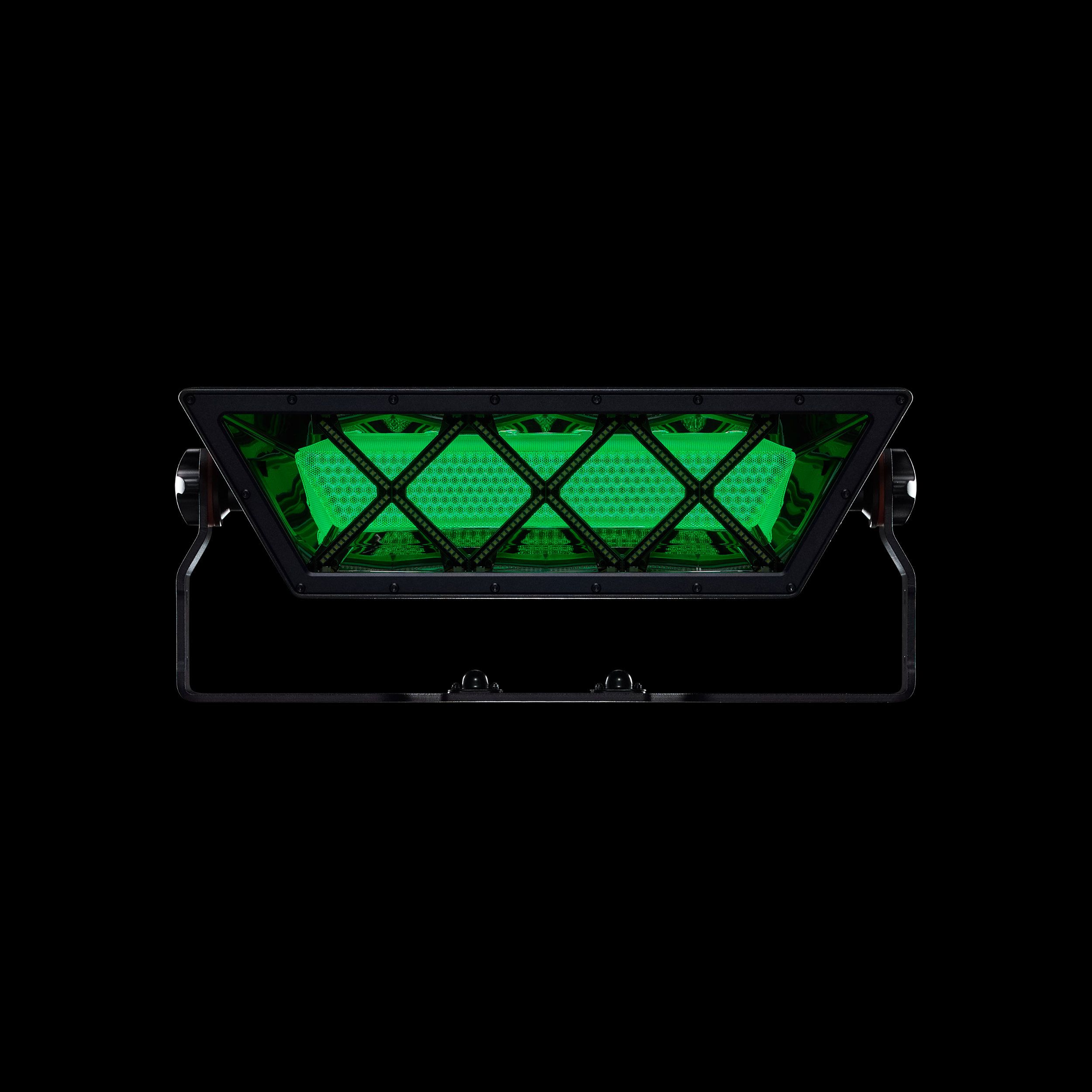

FREAX_front_Green20%_StrobeOff_BlackBg

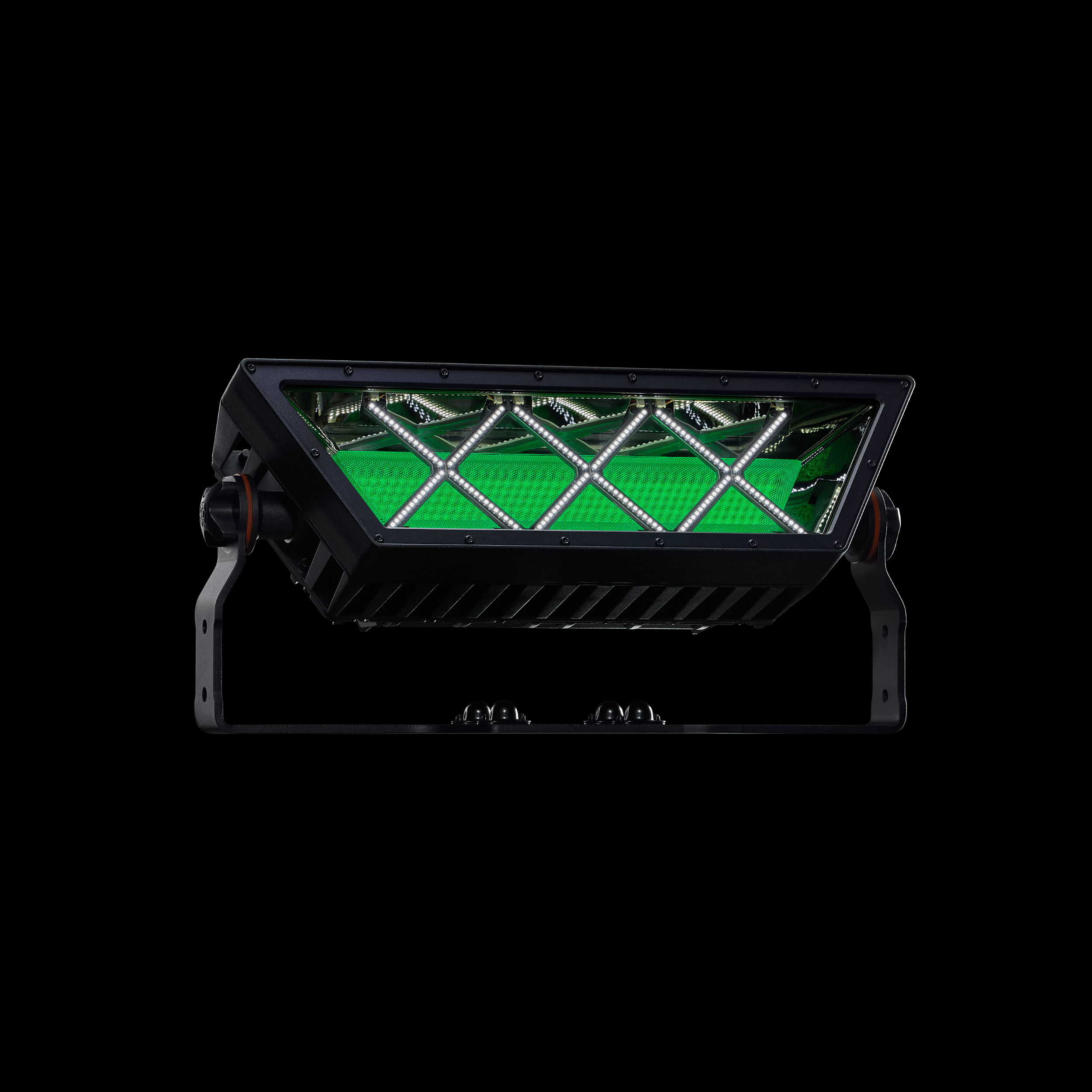

FREAX_hero_Green20%_Strobe10%_BlackBg

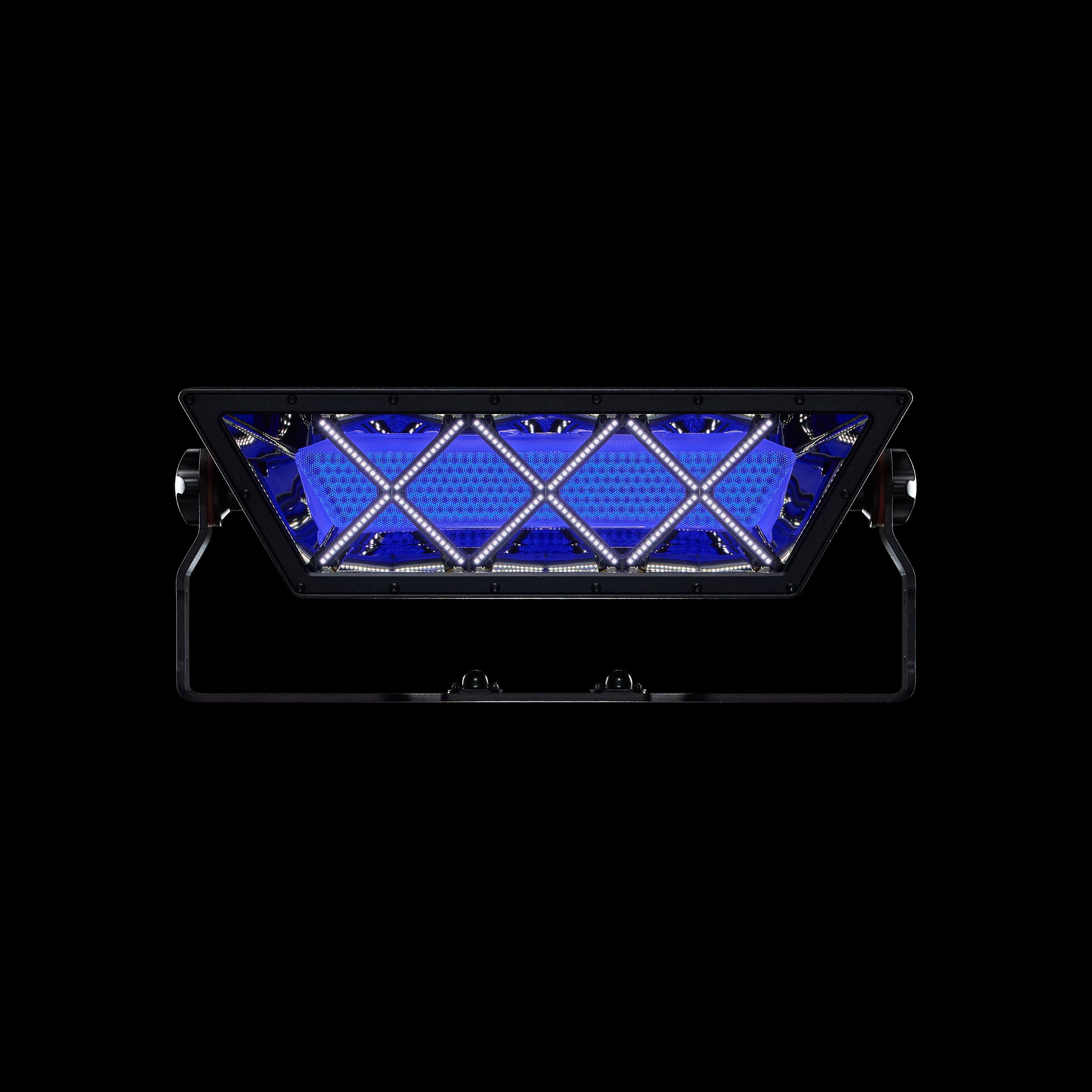

FREAX_front_Blue20%_Strobe10%_BlackBg

FREAX_hero_Blue20%_Strobe10%_BlackBg

FREAX_hero_Off_StrobeRandom10%_BlackBg

Specification

FREAX™

Weight (fixture only)

12 kg
(26.5 lbs)

DIMENSIONS

54 x 15 x 19 cm
(21.3 x 8.1 x 7.4 in)

protection rating

IP65

INPUT VOLTAGE

100-240 V 50/60 Hz

Max power consumption

750 W

Power connectors

AC power in/thru: powerCON TRUE1

Light sources

main: RGBW wash

strobe: TRI-X™

power

400W RGBW

700W CW

beam angle

81°

111°

colour temperature

3000 K + RGB

6500 K

Total luminous flux

7 874 lm

23 541 lm

Sections

11

60

CRI

85

70

Control Connectors

DMX512, RDM, CRMX (optional)

Control features

7 DMX modes (8-220 channels)
influencer/follower mode

Additional features

macros
Colour Feedback System – fixture’s auto information status

user interface

OLED display

CERTIFICATES

CE

WARRANTY

24 m

What’s in the box

Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual

SUPPORT & DOWNLOADS

FREAX™

LIBRARIES & 3D MODELS

FIRMWARE & SERVICE MANUALS

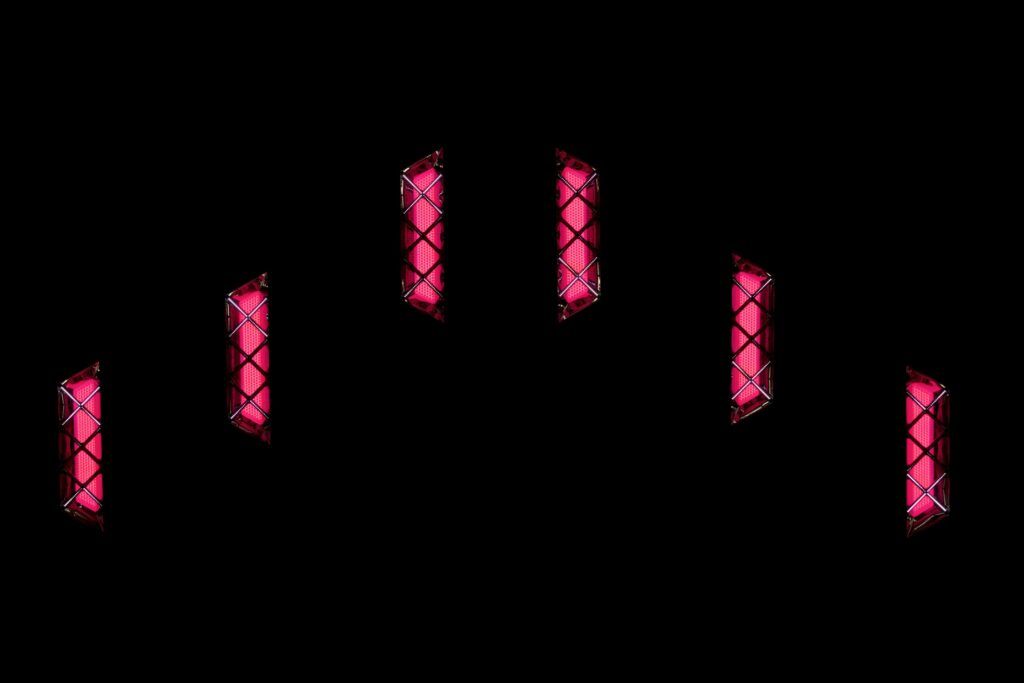

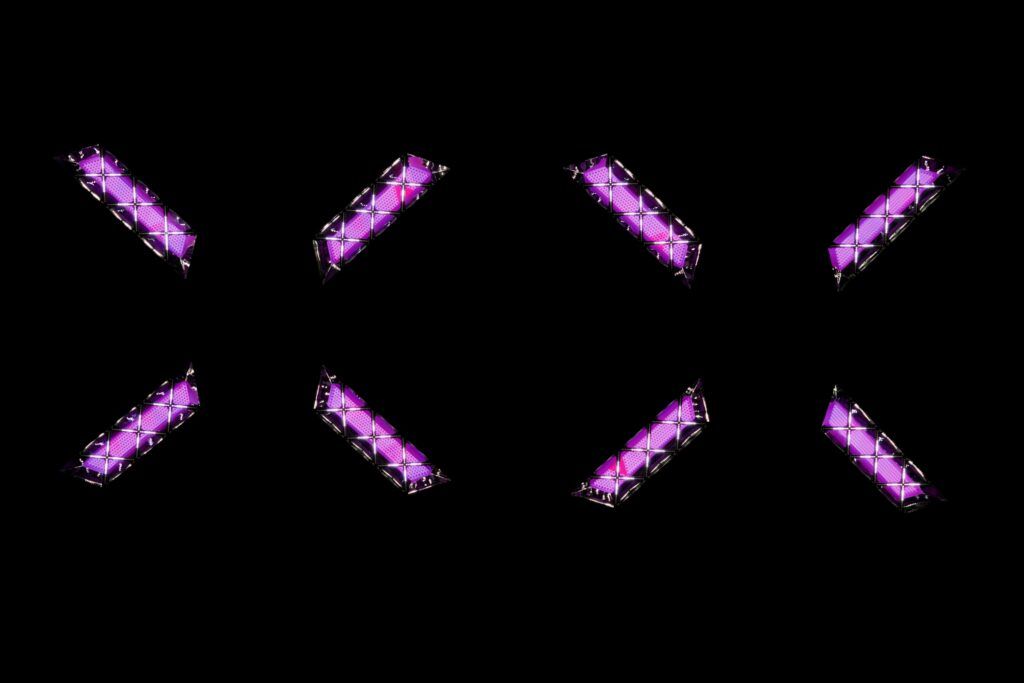

Portfolio

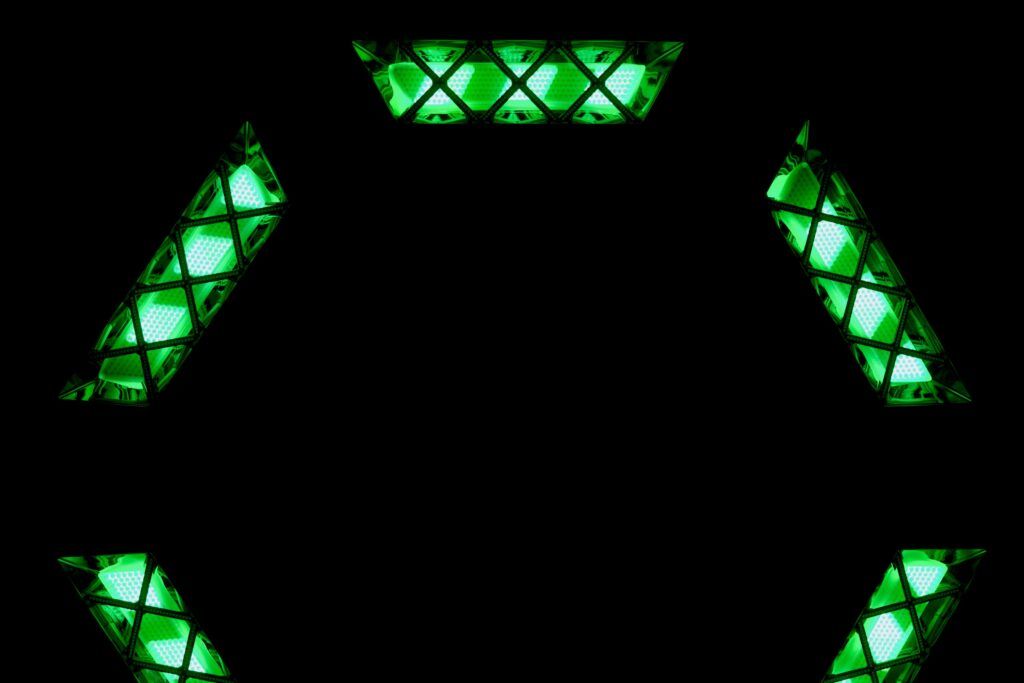

DSC01326 (1)
