The Ultimate Portman®
Ten years ago, Portman Lights set a new benchmark for stage emotion by merging classic tungsten warmth with decorative housing.

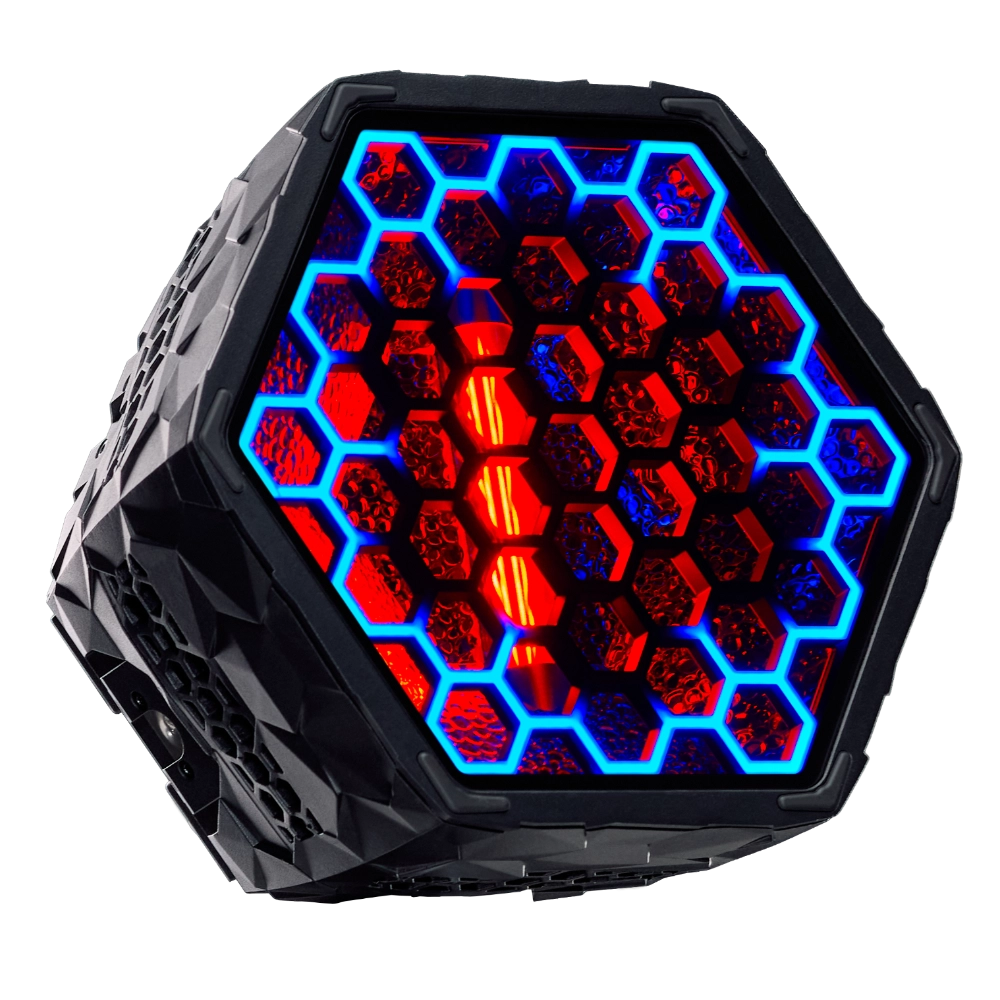

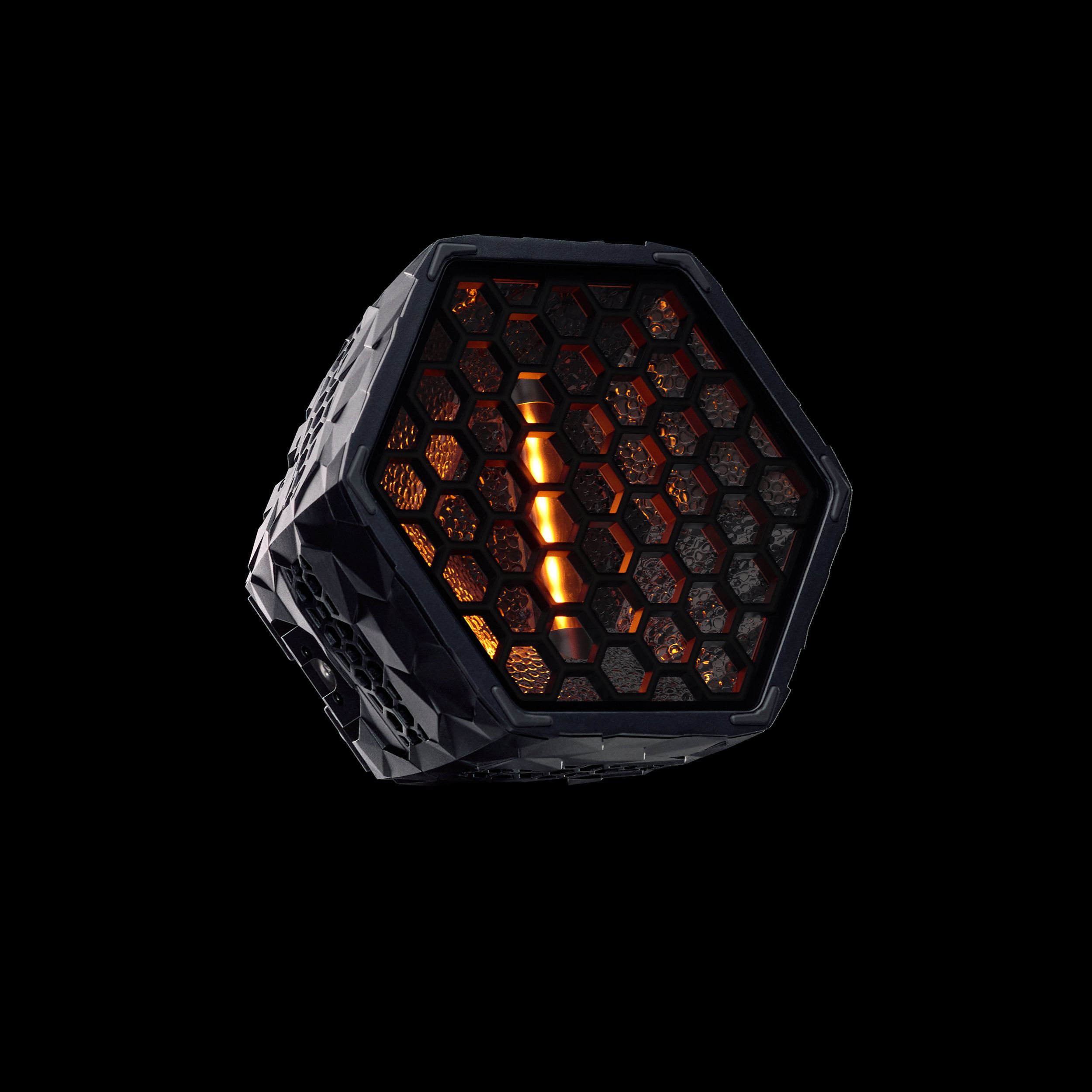

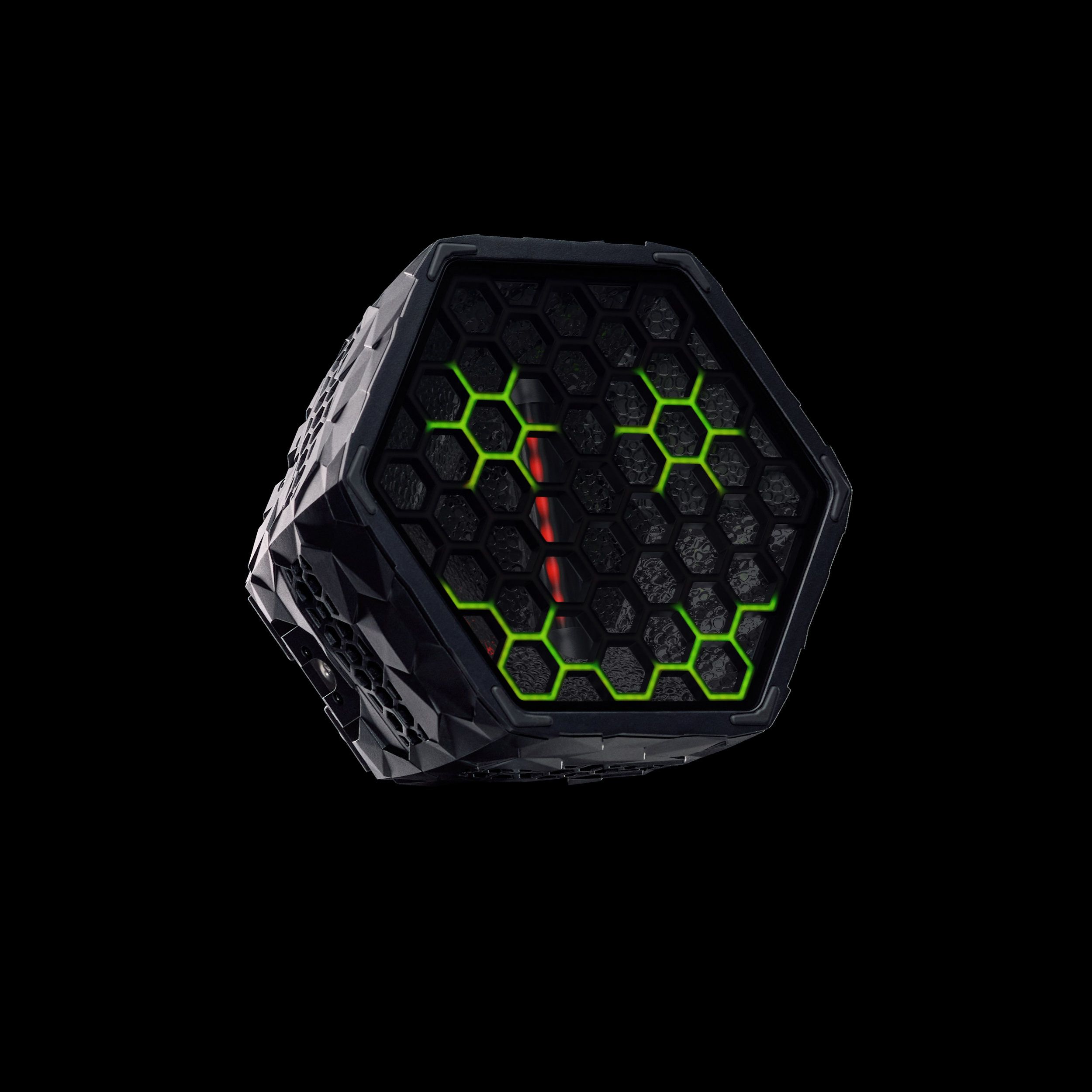

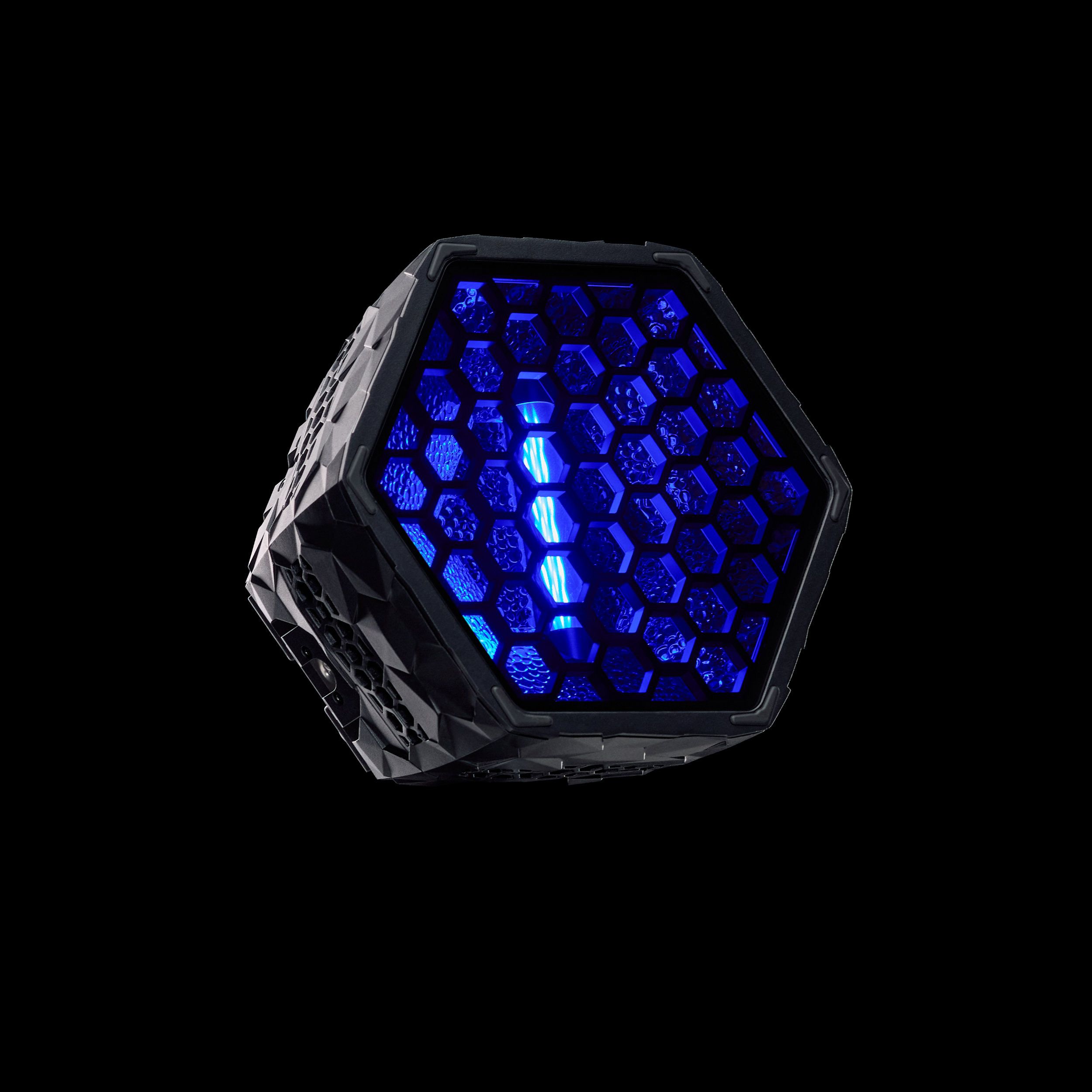

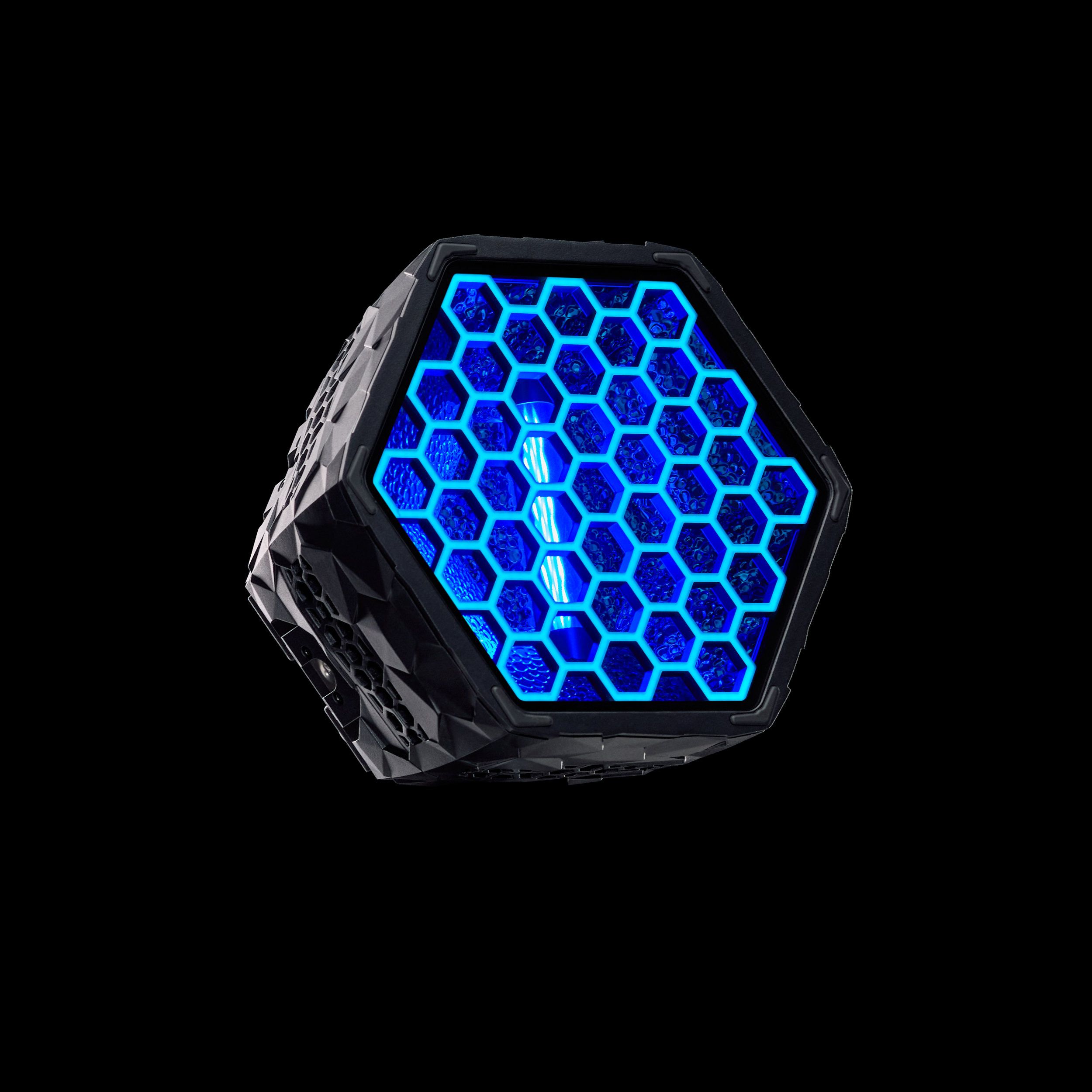

Today, we present the culmination of our journey: a single, weather-sealed hexagonal cell engineered with one of the best tungsten-emulated haloLED FC, pixel-mapped SMESH, and unprecedented visual depth.

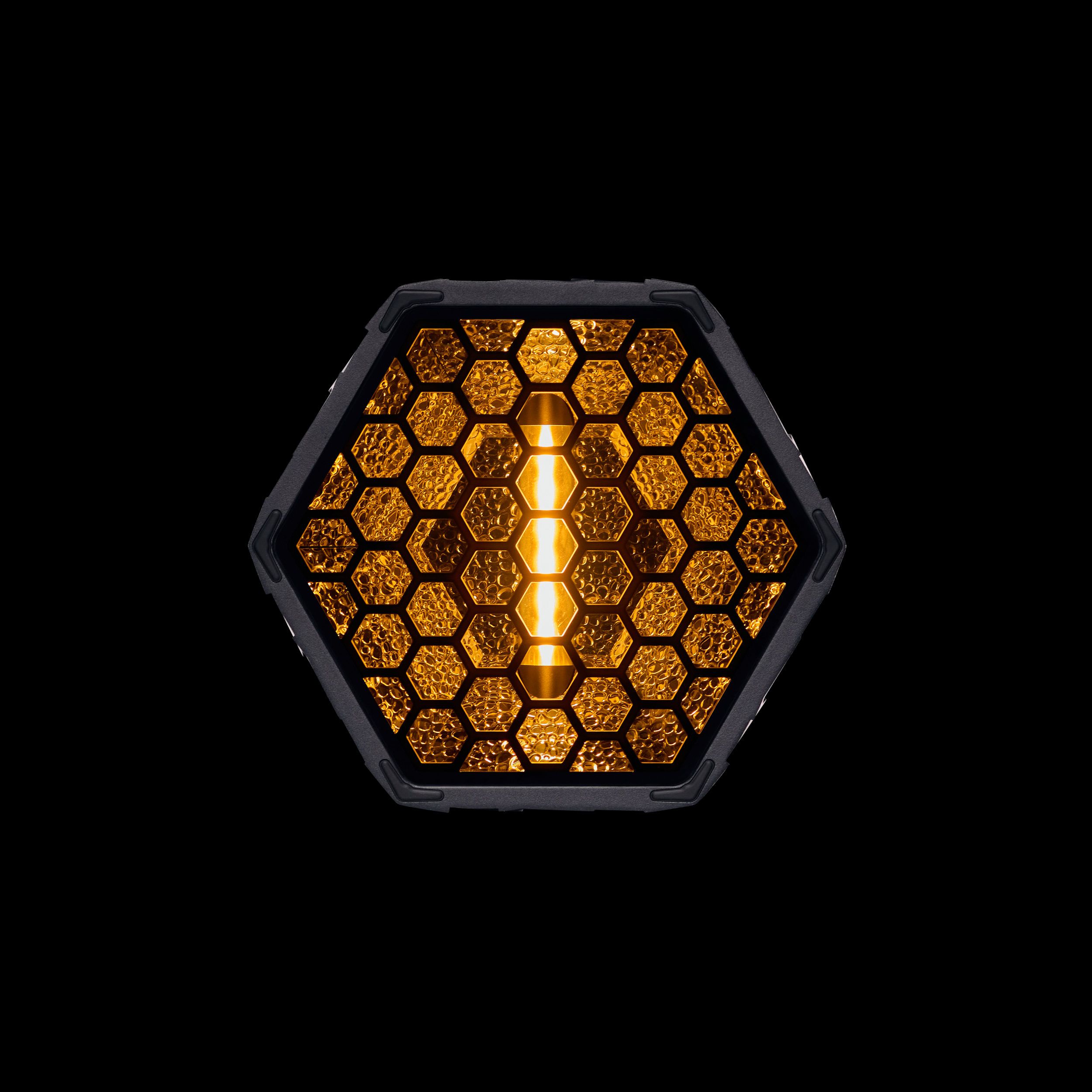

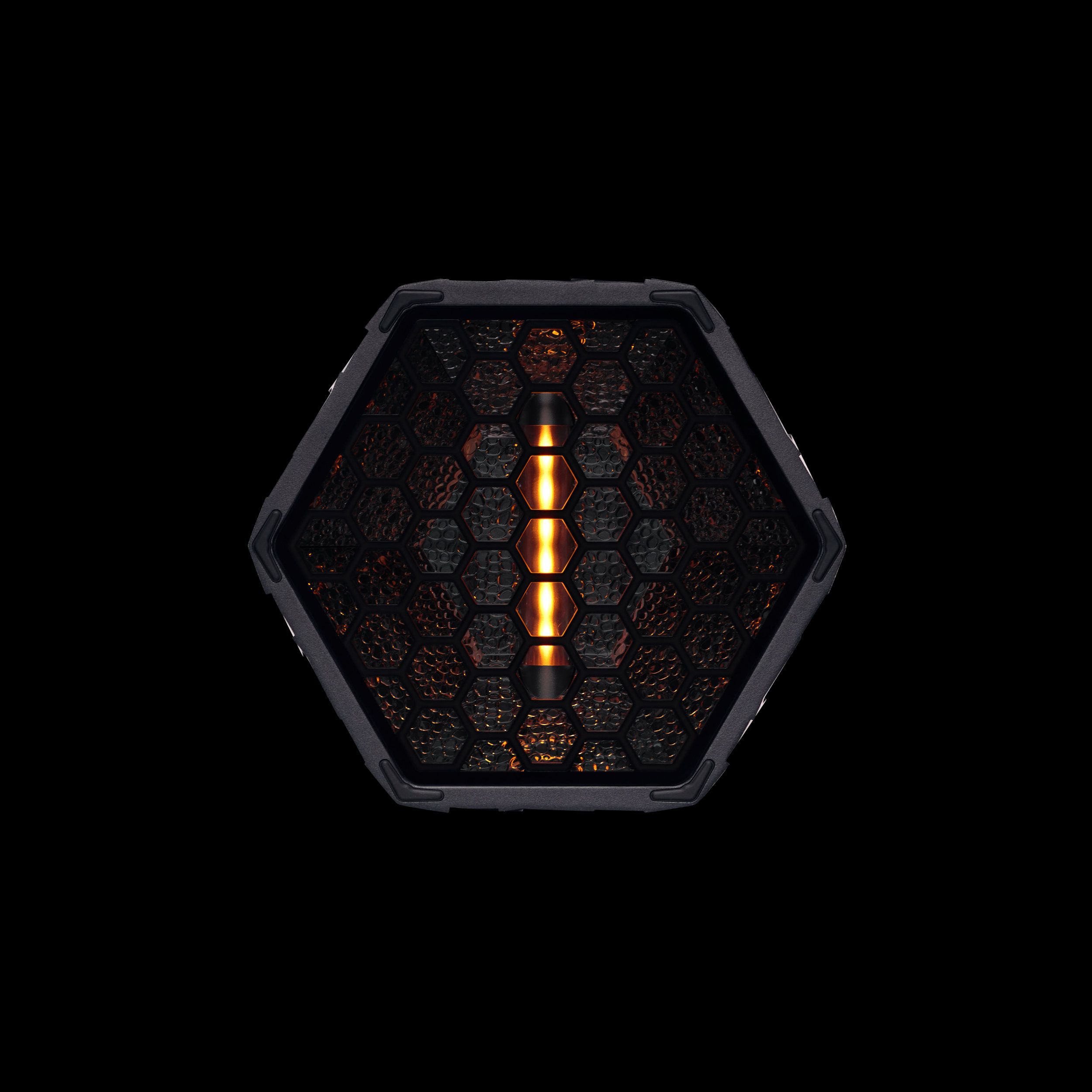

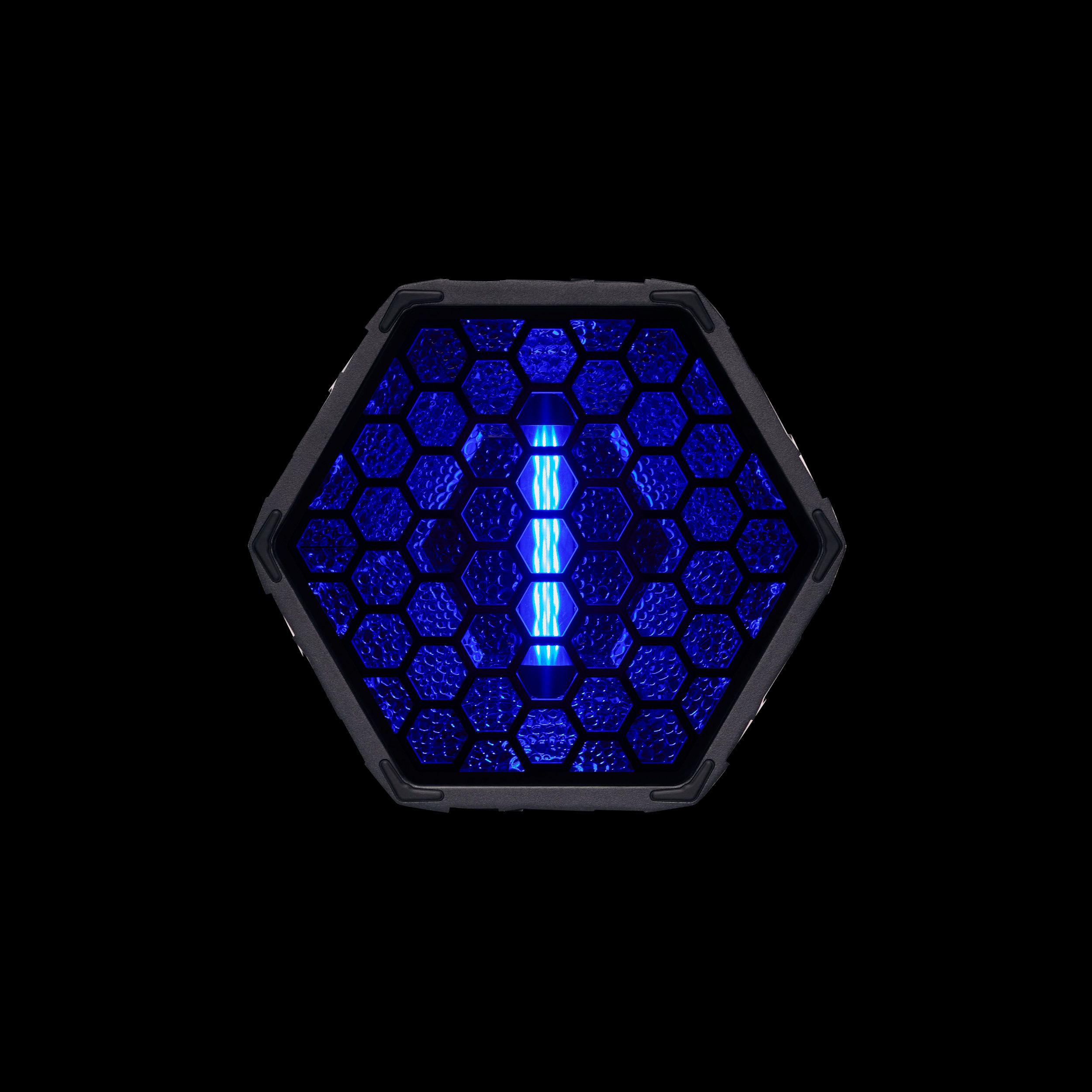

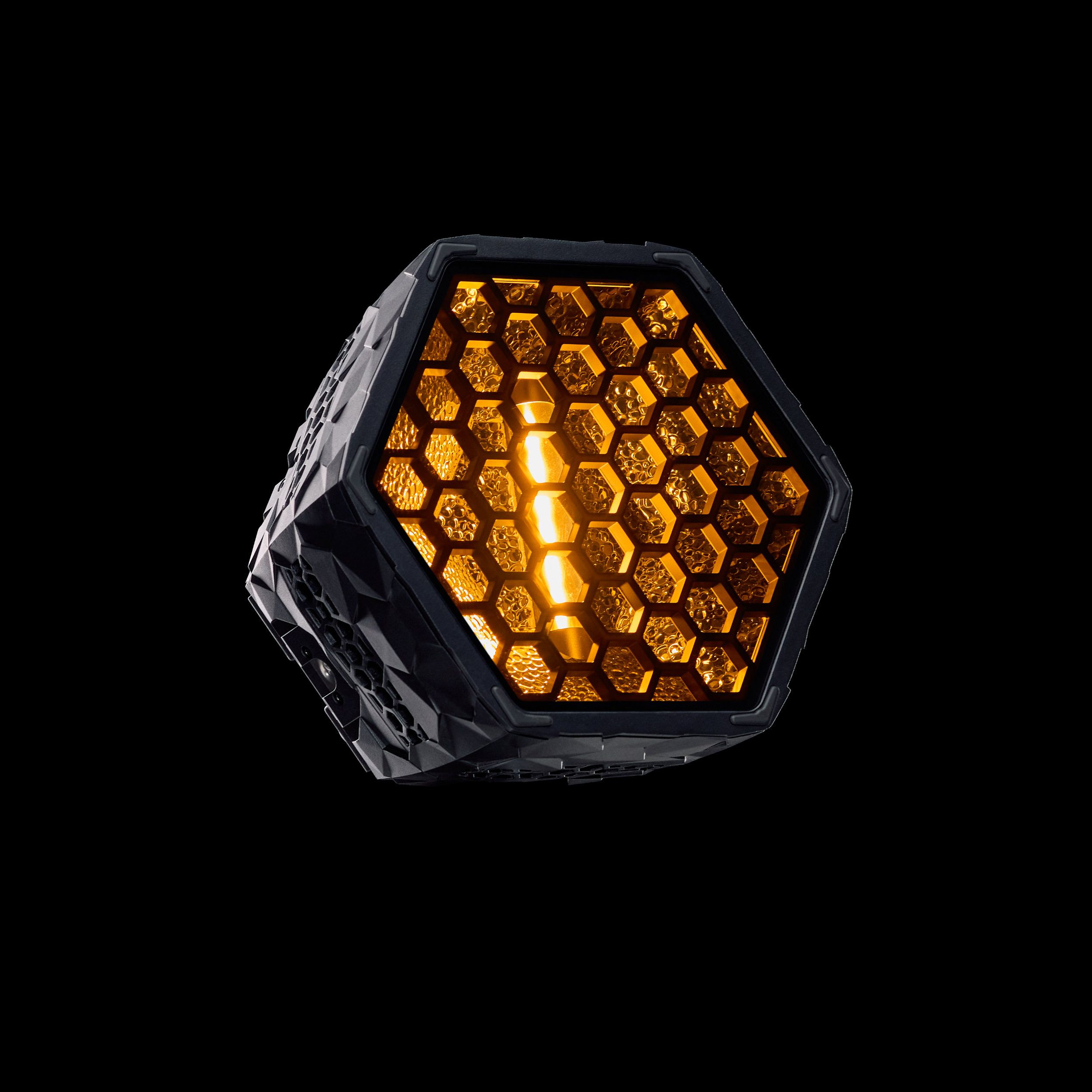

120W core source delivering Portman’s signature warm white (1600K–3200K tungsten emulation) integrated with full-spectrum RGB color mixing.

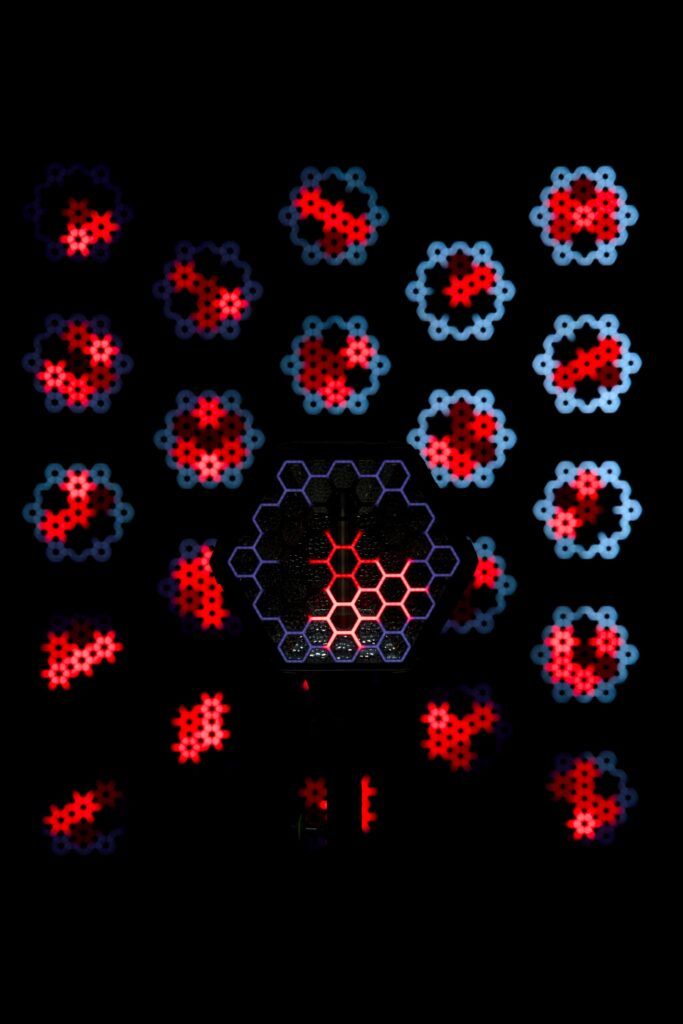

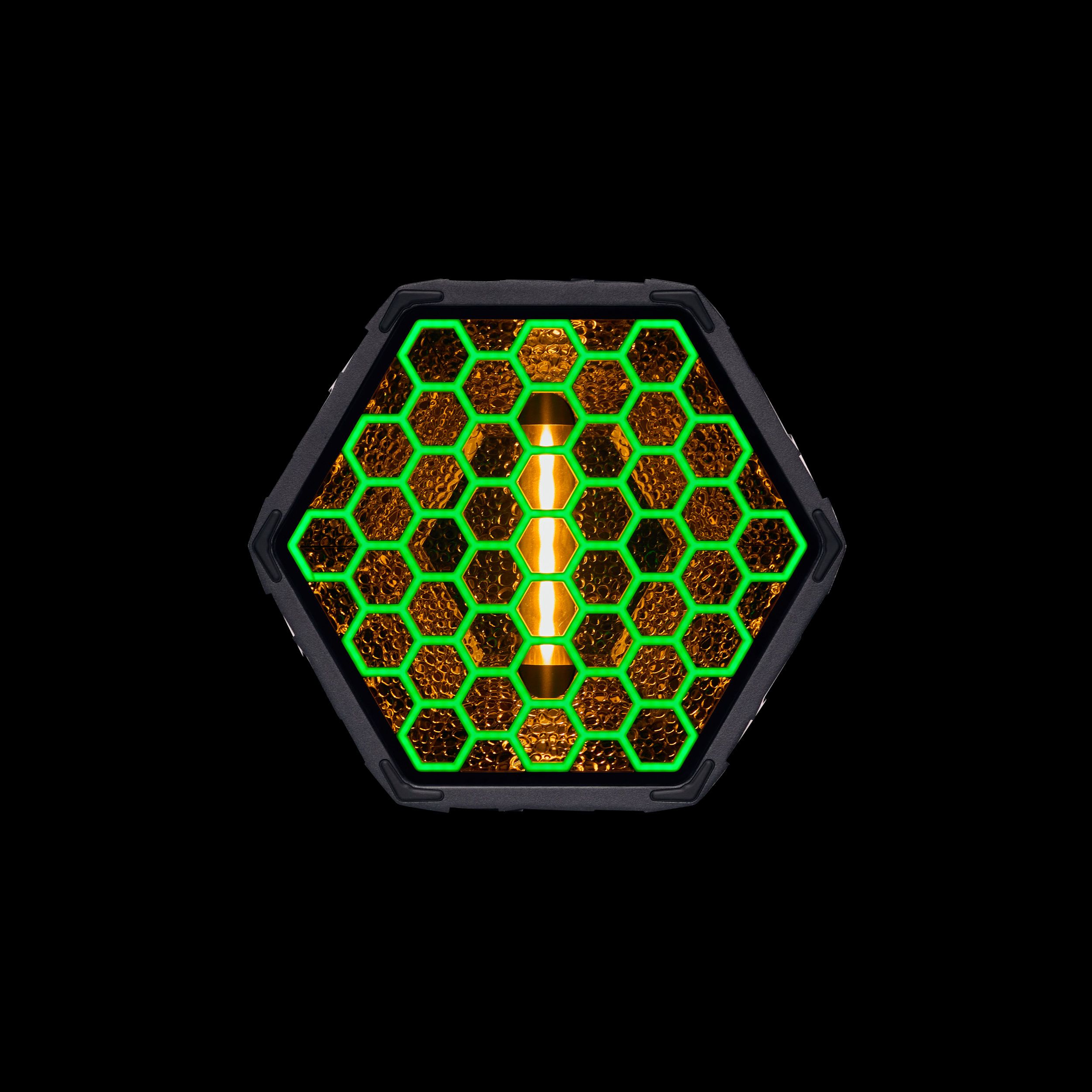

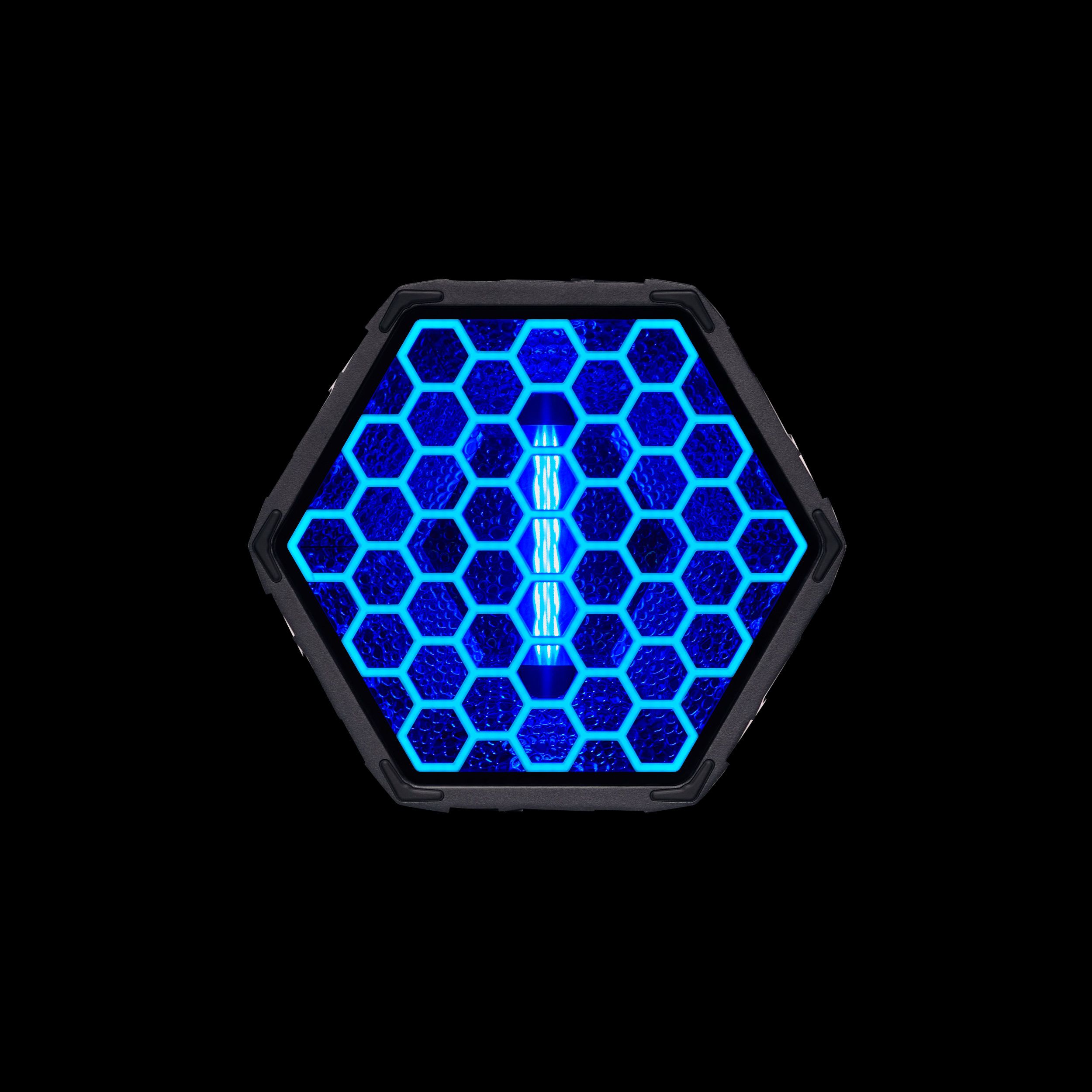

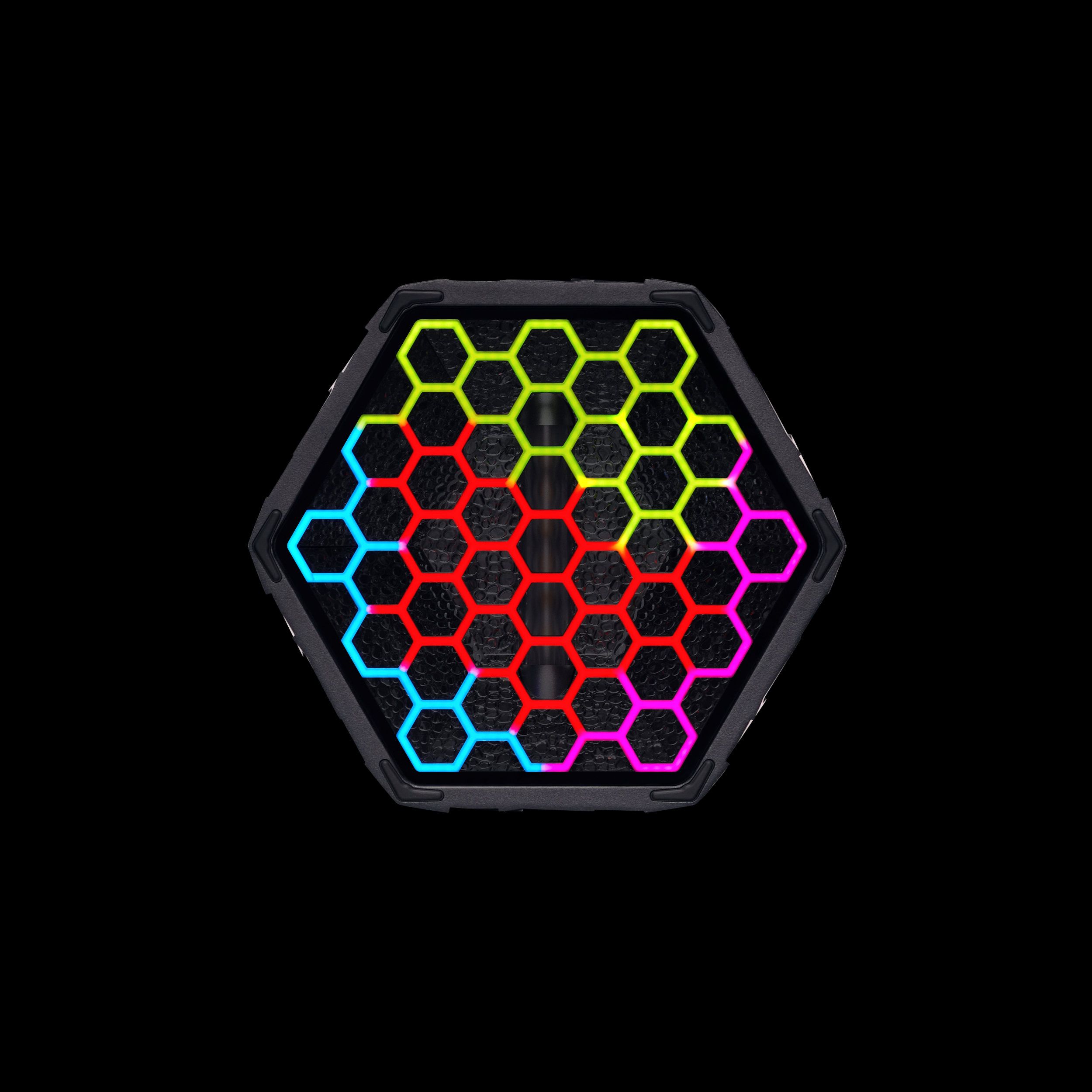

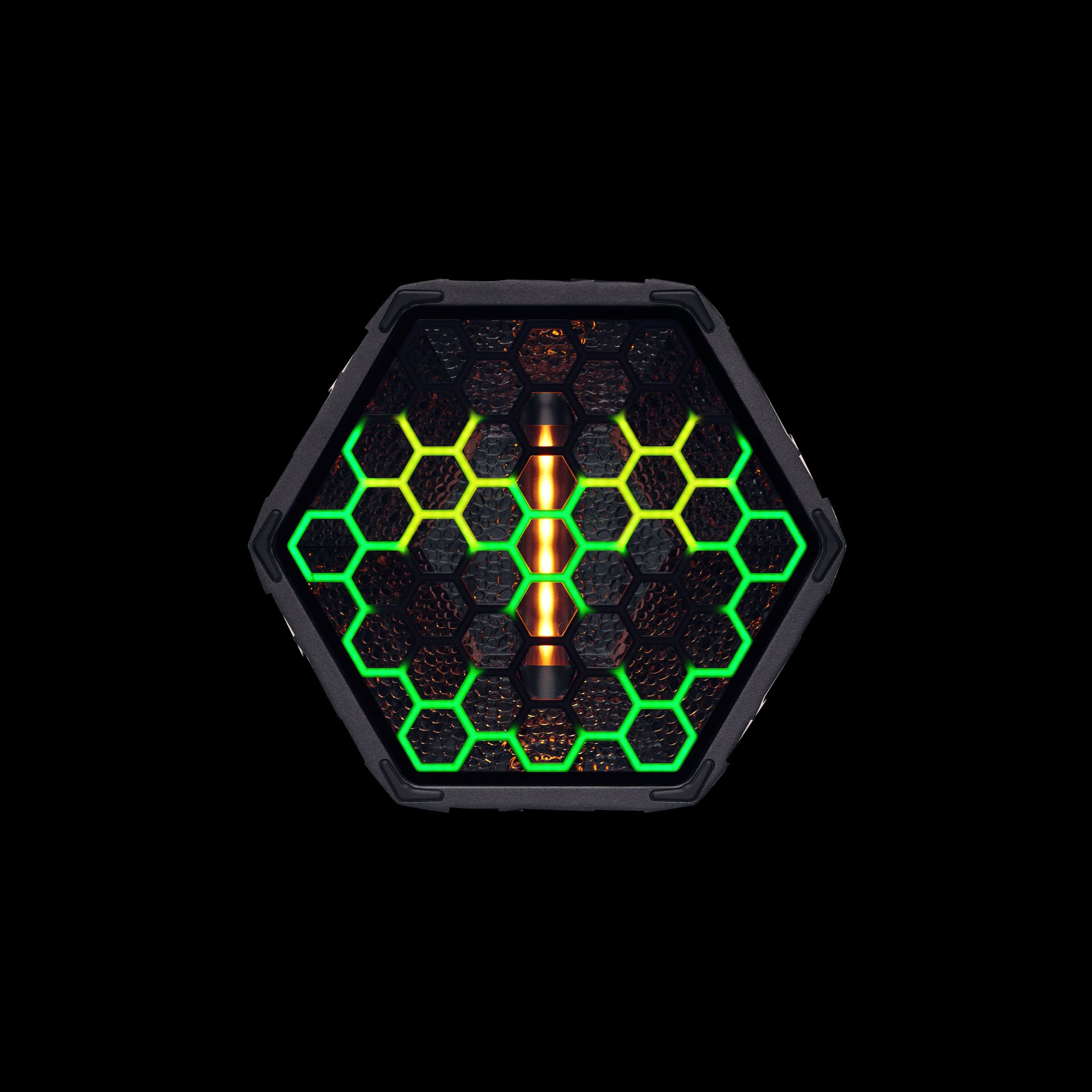

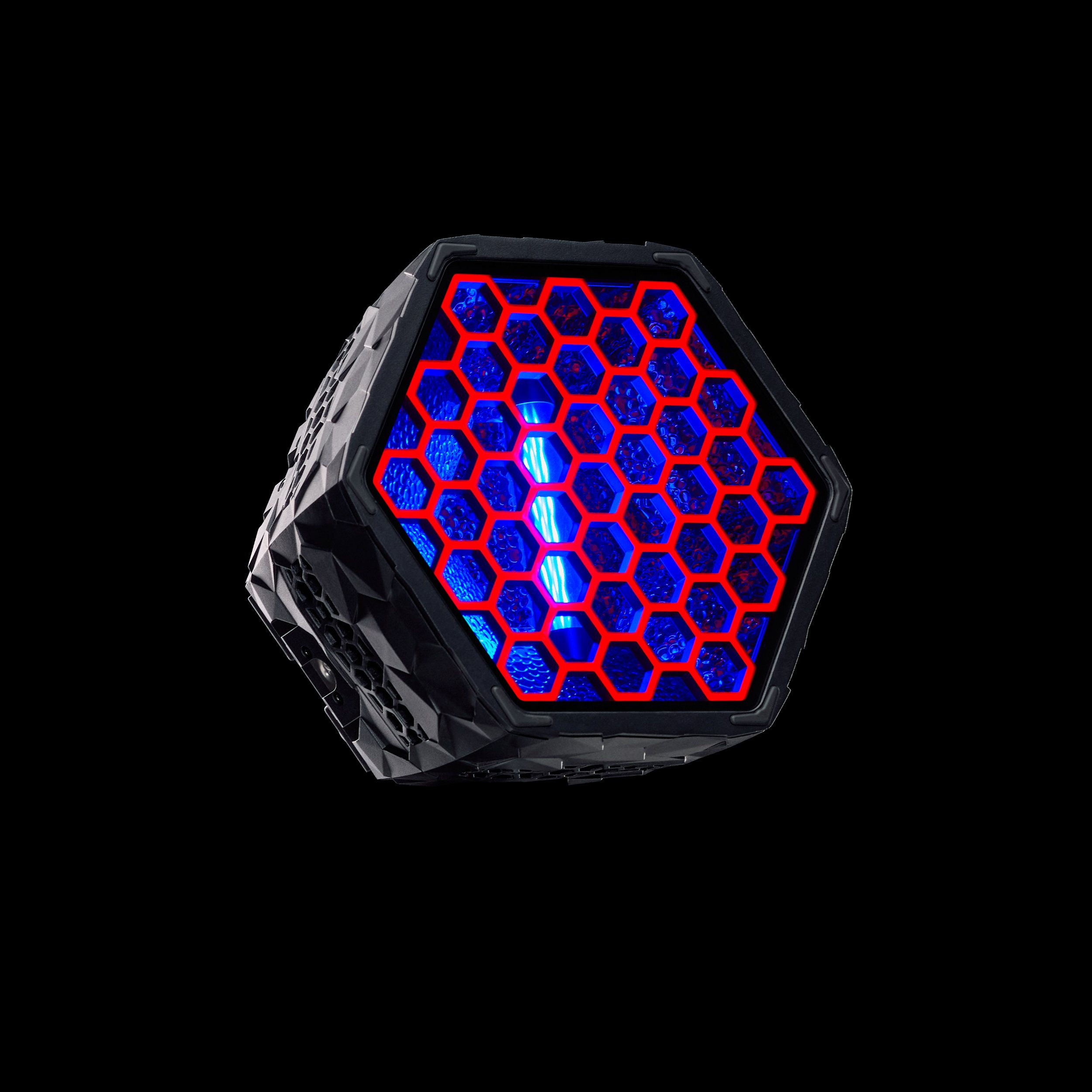

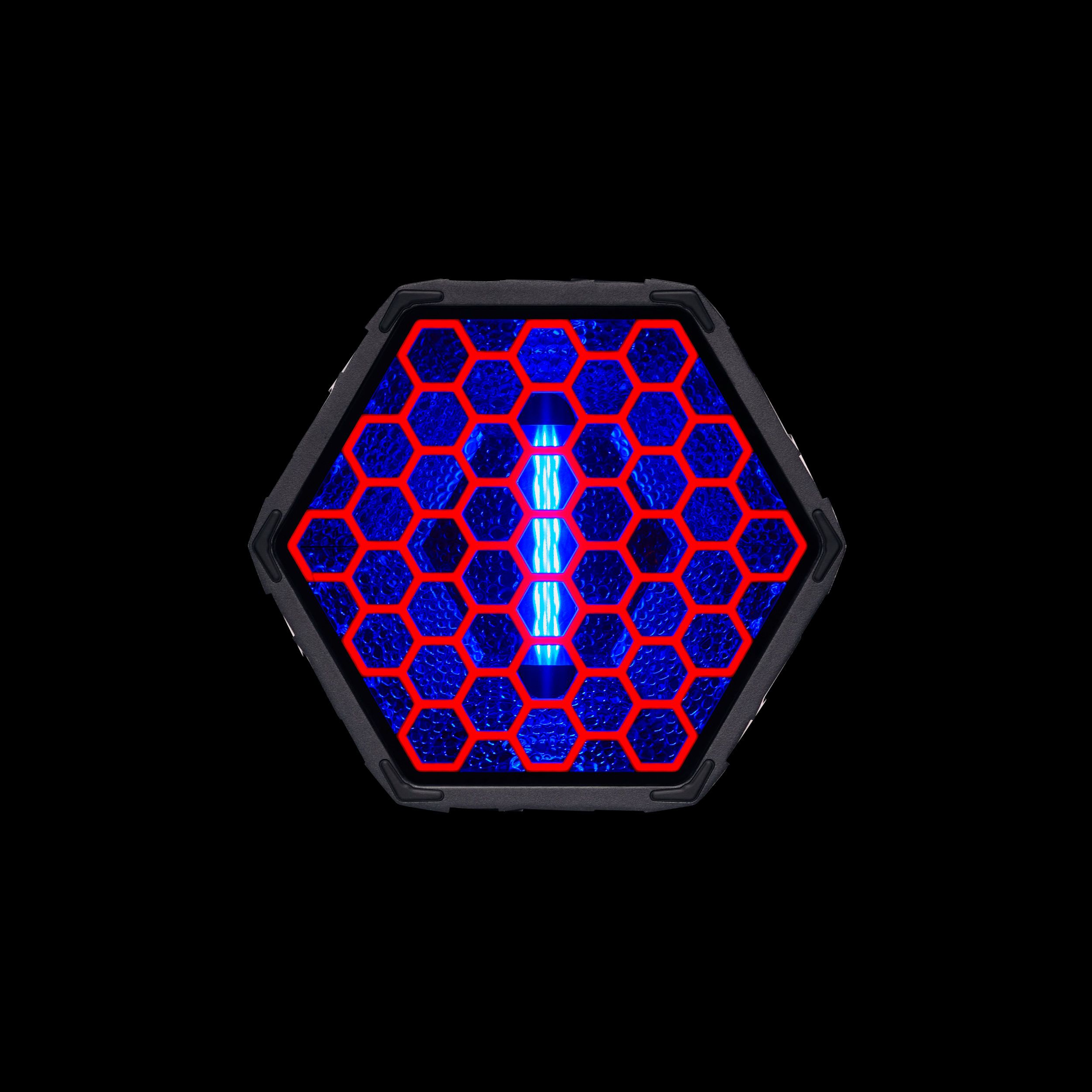

30W front-facing RGB grid featuring 13 independently pixel-mappable zones for dynamic kinetic motion and direct-view visual effects.

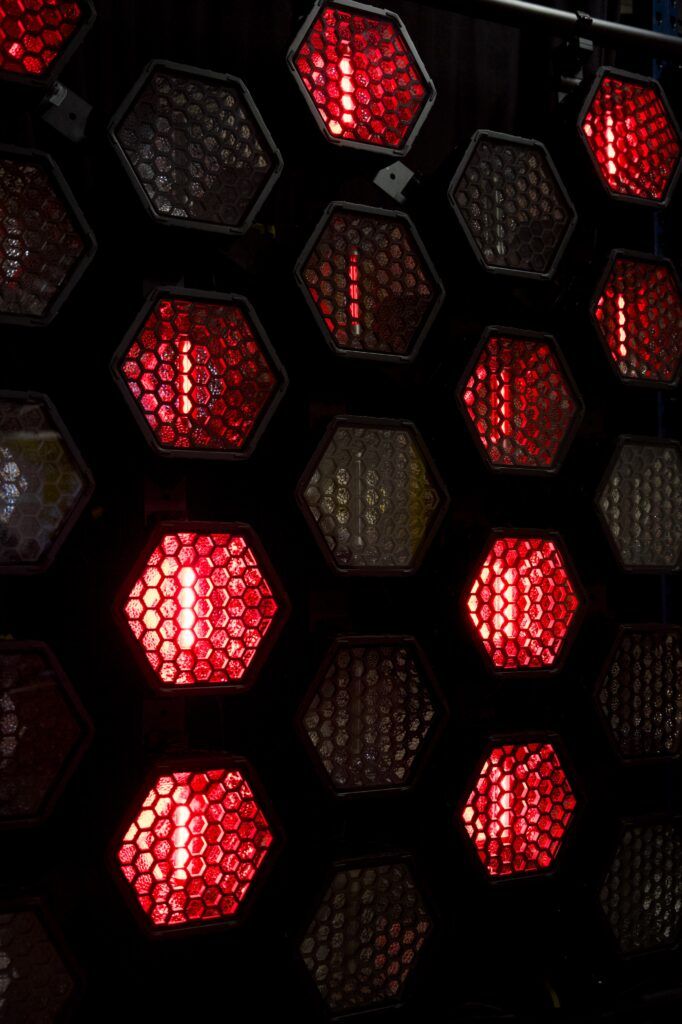

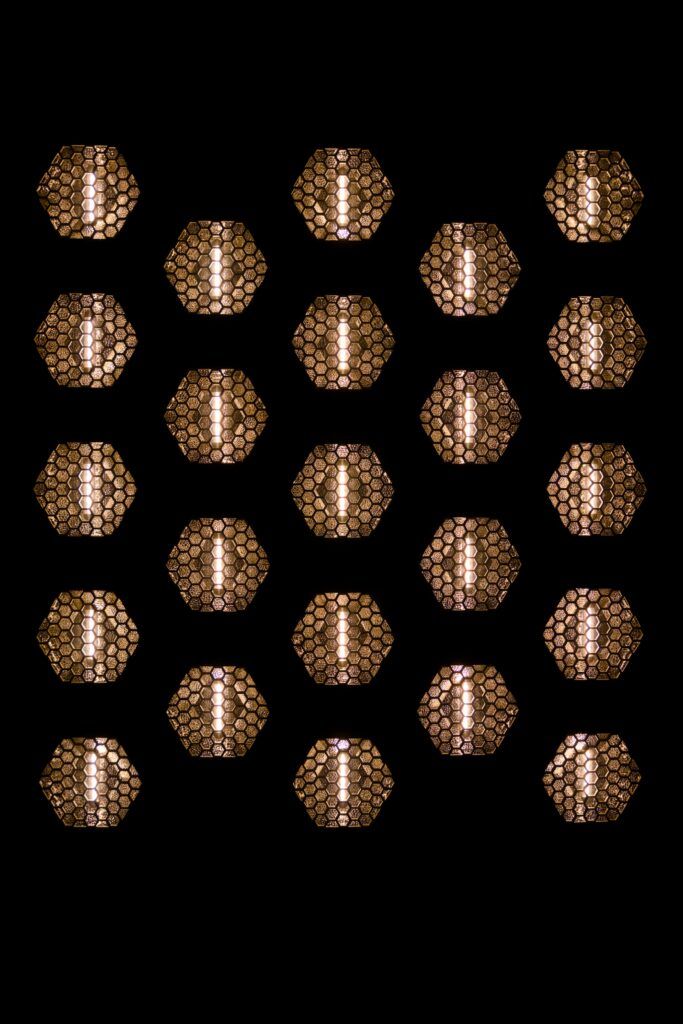

Built-in 6-point connection hardware enabling secure, tool-free interlinking of single cells into continuous hexagonal arrays.
Weight (fixture only)
6,5 kg
14.3 lbs
protection rating
IP65
INPUT VOLTAGE
100-240 V 50/60 Hz
Max power consumption
120 W
Power connectors
AC power in/thru: powerCON TRUE1
Light sources
main: haloLED™ FC
mesh matrix: SMESH™
power
120W WW + 90W RGB
30W RGB
beam angle
94°
colour temperature
1600 – 3200 K
RGB
Total luminous flux
3 500lm
1 000lm
Sections
1
13
CRI
> 80
Control Connectors
DMX512, RDM, WDMX (optional)
Control features
7 DMX modes (9-94 channels)
RDM
macros
influencer/follower mode
Additional features
3D HEXskin™ housing
fastLINK™ quick connectors
user interface
OLED display
CERTIFICATES
CE
WARRANTY
24 m
What’s in the box
Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual
Fixed fastLINK™ connector
Adjustable fastLINK™ connector
